Complete tutorial of creating RESTful API with Spring.

Configuration

Java Compilation:
Java Runtime:
Web Server:
Maven:

Java Compilation:
Java Runtime:
Web Server:
Gradle:

JDK 17.0.2
JRE OpenJDK 17.0.2
Tomcat 10.1.16
Maven 3.9.6

JDK 17.0.2
JRE OpenJDK 17.0.2
Tomcat 10.1.16
Gradle 8.6

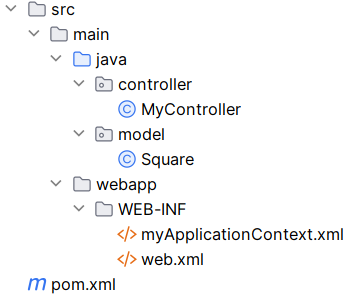

Create the following folder structure:

folder structure of Create first RESTful API with Spring

pom.xml: (if using Gradle, replace pom.xml with build.gradle)


<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
             xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
             xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>
    <groupId>net.maxjava</groupId>
    <artifactId>FirstSpringRESTAPI</artifactId>
    <version>1.0</version>
    <packaging>war</packaging>
    <dependencies>
        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-webmvc</artifactId>
            <version>6.1.6</version>
        </dependency>
        <dependency>
            <groupId>com.fasterxml.jackson.core</groupId>
            <artifactId>jackson-databind</artifactId>
            <version>2.15.4</version>
        </dependency>
        <dependency>
            <groupId>org.projectlombok</groupId>
            <artifactId>lombok</artifactId>
            <version>1.18.30</version>
        </dependency>
    </dependencies>
    <build>
        <plugins>
            <plugin>
                <artifactId>maven-compiler-plugin</artifactId>
                <version>3.13.0</version>
                <configuration>
                    <source>17</source>
                    <target>17</target>
                </configuration>
            </plugin>
        </plugins>
    </build>
</project>


plugins {
    id 'java'
    id 'war'
}

java {
    sourceCompatibility = 17
    targetCompatibility = 17
}

group 'net.maxjava'
version '1.0'

repositories {
    mavenCentral()
}

dependencies {
    implementation group: 'com.fasterxml.jackson.core', name: 'jackson-databind', version: '2.15.4'
    implementation group: 'org.springframework', name: 'spring-webmvc', version: '6.1.6'
    compileOnly group: 'org.projectlombok', name: 'lombok', version: '1.18.30'
    annotationProcessor group: 'org.projectlombok', name: 'lombok', version: '1.18.30'
}

Some notes about pom.xml:

spring-webmvc for necessary Spring REST controllers and its dependencies
jackson-databind is for the java object serialization and deserialization
lombok to remove boilerplate code like get and set
maven-compiler-plugin is for compiling the code using source version 17 and target version 17
A war artifact will be created for deployment to servlet containers

Some notes about build.gradle:

spring-webmvc for necessary Spring REST controllers and its dependencies
jackson-databind is for the java object serialization and deserialization
lombok to remove boilerplate code like get and set
targetCompatibility is used to configure compilation with source version 17 and target version 17
A war artifact will be created for deployment to servlet containers

web.xml:


<web-app>
    <display-name>First Spring REST API</display-name>
    <servlet>
        <servlet-name>FirstSpringRESTAPI</servlet-name>
        <servlet-class>org.springframework.web.servlet.DispatcherServlet</servlet-class>
        <init-param>
            <param-name>contextConfigLocation</param-name>
            <param-value>/WEB-INF/myApplicationContext.xml</param-value>
        </init-param>
        <load-on-startup>1</load-on-startup>
    </servlet>
    <servlet-mapping>
        <servlet-name>FirstSpringRESTAPI</servlet-name>
        <url-pattern>/*</url-pattern>
    </servlet-mapping>
</web-app>

Some notes about web.xml:

org.springframework.web.servlet.DispatcherServlet is the servlet class for Spring
/WEB-INF/myApplicationContext.xml is the location of the Spring context configuration file

myApplicationContext.xml:


<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
    xmlns:context="http://www.springframework.org/schema/context"
    xmlns:mvc="http://www.springframework.org/schema/mvc"
    xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
    xsi:schemaLocation="
    http://www.springframework.org/schema/beans
    http://www.springframework.org/schema/beans/spring-beans.xsd
    http://www.springframework.org/schema/context
    http://www.springframework.org/schema/context/spring-context.xsd
    http://www.springframework.org/schema/mvc
    http://www.springframework.org/schema/mvc/spring-mvc.xsd">
    <context:component-scan base-package="controller"/>
    <mvc:annotation-driven>
        <mvc:message-converters>
            <bean class="org.springframework.http.converter.json.MappingJackson2HttpMessageConverter"/>
        </mvc:message-converters>
    </mvc:annotation-driven>
</beans>

Some notes about myApplicationContext.xml:

<context:component-scan base-package="controller"/> is for Spring to look for classes in specific packages to create beans
<mvc:message-converters> is to specify library for json serialization and deserialization

MyController.java:


package controller;

import model.Square;
import org.springframework.web.bind.annotation.*;

@RestController
@RequestMapping("/myapp")
public class MyController {

    @GetMapping("/square")
    public Square getSquare(@RequestParam("side") int side, @RequestParam("color") String color) {

        Square square = new Square();
        square.setArea(side * side);
        square.setColor(color);

        return square;
    }

    @PostMapping("/square")
    public String postSquare(@RequestBody Square square) {

        return "Got square, which the side is " + Math.sqrt(square.getArea());
    }
}

Some notes about MyController.java:

Specifying @RestController will make this a controller to handle web request. Using @RestController instead of @Controller to perform serialization automatically, without the need of using @ResponseBody
@RequestMapping("/myapp") + @GetMapping("/square") will make the getSquare function map to the path in the URL to GET /myapp/square
@RequestParam will map to the query param side and color
@RequestMapping("/myapp") + @PostMapping("/square") will make the postSquare function map to the path in the URL to POST /myapp/square
@RequestBody is to perform de-serialization into the Java object

Square.java:


package model;

import lombok.Data;

@Data
public class Square {

    private String color;
    private int area;
}

Some notes about Square.java:

This is the object used in the request or response body on the Controller APIs
Use Lombok @Data for get and set

Sample output(assume the war file is deployed to <CONTEXT_PATH>):

GET:


curl --request GET '<CONTEXT_PATH>/myapp/square?side=12&color=blue'

Response:


{
    "color": "blue",
    "area": 144
}

POST:


curl --request POST '<CONTEXT_PATH>/myapp/square' --header 'Content-Type:application/json' --data '
{
    "color": "blue",
    "area": 144
}'

Response:


Got square, which the side is 12.0
