Complete tutorial of creating RESTful API with Spring Boot.

Configuration

Java Compilation:
Java Runtime:
Maven:

Java Compilation:
Java Runtime:
Gradle:

JDK 17.0.2
JRE OpenJDK 17.0.2
Maven 3.9.6

JDK 17.0.2
JRE OpenJDK 17.0.2
Gradle 8.6

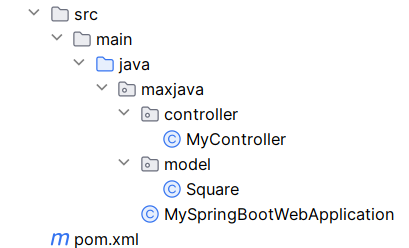

Create the following folder structure:

folder structure of Create first RESTful API with Spring Boot

pom.xml: (if using Gradle, replace pom.xml with build.gradle)


<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>
    <parent>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter-parent</artifactId>
        <version>3.2.5</version>
    </parent>
    <groupId>net.maxjava</groupId>
    <artifactId>FirstSpringBootWebService</artifactId>
    <version>1.0</version>
    <packaging>jar</packaging>
    <dependencies>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-web</artifactId>
            <scope>compile</scope>
        </dependency>
        <dependency>
            <groupId>org.projectlombok</groupId>
            <artifactId>lombok</artifactId>
            <version>1.18.30</version>
        </dependency>
    </dependencies>
    <build>
        <plugins>
            <plugin>
                <groupId>org.springframework.boot</groupId>
                <artifactId>spring-boot-maven-plugin</artifactId>
            </plugin>
        </plugins>
    </build>
</project>


plugins {
    id 'java'
    id 'org.springframework.boot' version '3.2.5'
    id 'io.spring.dependency-management' version '1.1.4'
}

group 'net.maxjava'
version '1.0'

repositories {
    mavenCentral()
}

dependencies {
    implementation 'org.springframework.boot:spring-boot-starter-web'
    compileOnly 'org.projectlombok:lombok:1.18.30'
    annotationProcessor 'org.projectlombok:lombok:1.18.30'
}

Some notes about pom.xml:

spring-boot-starter-parent as parent POM for Spring Boot application
Spring Boot 3.2.5 requires Java 17
lombok is used to remove boilerplate code like get and set
Use spring-boot-maven-plugin to re-package all dependencies into a single, executable jar
By running mvn clean package, a jar artifact which is ready to run by using java -jar will be created

Some notes about gradle.build:

Use org.springframework.boot plugin for Spring Boot application, to make the jar executable and re-package all dependencies into a single jar
Spring Boot 3.2.5 requires Java 17
Use io.spring.dependency-management plugin for dependency management
lombok is used to remove boilerplate code like get and set
By running gradle clean build, a jar artifact which is ready to run by using java -jar will be created

MySpringBootWebApplication.java:


package maxjava;

import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;

@SpringBootApplication
public class MySpringBootWebApplication {
    public static void main(String[] args) {
        SpringApplication.run(MySpringBootWebApplication.class, args);
    }
}

Some notes about MySpringBootWebApplication.java:

Mark a class with @SpringBootApplication and pass the class in SpringApplication.run will be good enough to run a Spring Boot application with web server (default setting)
We could just put SpringApplication.run inside the static main function and annotate the same class for simplicity

MyController.java:


package maxjava.controller;

import maxjava.model.Square;
import org.springframework.web.bind.annotation.*;

@RestController
@RequestMapping("/myapp")
public class MyController {

    @GetMapping("/square")
    public Square getSquare(@RequestParam("side") int side, @RequestParam("color") String color) {

        Square square = new Square();
        square.setArea(side * side);
        square.setColor(color);

        return square;
    }

    @PostMapping("/square")
    public String postSquare(@RequestBody Square square) {

        return "Got square, which the side is " + Math.sqrt(square.getArea());
    }
}

Some notes about MyController.java:

Specifying @RestController will make this a controller to handle web request. Using @RestController instead of @Controller to perform serialization automatically, without the need of using @ResponseBody
@RequestMapping("/myapp") + @GetMapping("/square") will make the getSquare function map to the path in the URL to GET /myapp/square
@RequestParam will map to the query param side and color
@RequestMapping("/myapp") + @PostMapping("/square") will make the postSquare function map to the path in the URL to POST /myapp/square
@RequestBody is to perform de-serialization into the Java object

Square.java:


package maxjava.model;

import lombok.Data;

@Data
public class Square {

    private String color;
    private int area;
}

Some notes about Square.java:

This is the object used in the request or response body on the Controller APIs
Use Lombok @Data for get and set

To run the application, java -jar target/FirstSpringBootRESTAPI-1.0.jar

Sample output:

GET:


curl --request GET '<CONTEXT_PATH>/myapp/square?side=12&color=blue'

Response:


{
    "color": "blue",
    "area": 144
}

POST:


curl --request POST '<CONTEXT_PATH>/myapp/square' --header 'Content-Type:application/json' --data '
{
    "color": "blue",
    "area": 144
}'

Response:


Got square, which the side is 12.0
