Since Java 9, Java release a feature called Module. Module allows a jar to declare availability of packages and its dependencies of packages from other jars, thus reduce the chance of ClassNotFoundException and increase encapsulation.

Configuration

Java Compilation:
Java Runtime:
Maven:

Java Compilation:
Java Runtime:
Gradle:

JDK 11.0.12
JRE HotSpot 11.0.12
Maven 3.8.4

JDK 11.0.12
JRE HotSpot 11.0.12
Gradle 7.4.2

This tutorial will show you how to convert a Java project with regular Jars to Modular Jars

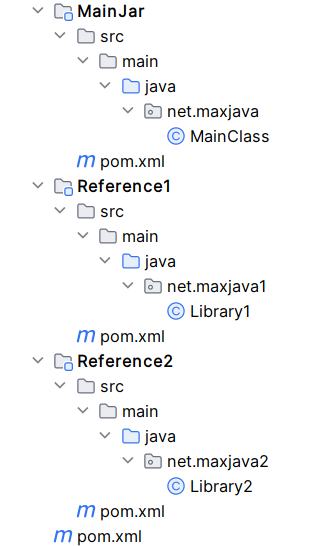

Assuming you have the following Maven project structure before conversion, where the main pom.xml is a parent pom with 3 Maven modules, with MainJar which contains the main class. MainJar uses a class in Reference2, which uses a class in Reference1:

folder structure of Convert a Java project to Modular format

pom.xml: (if using Gradle, replace pom.xml with build.gradle and add settings.gradle in parent folder)

parent pom.xml:


<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
    xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
    xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>
    <groupId>net.maxjava</groupId>
    <artifactId>ConvertToModularJar_before</artifactId>
    <packaging>pom</packaging>
    <version>1.0</version>
    <modules>
        <module>Reference1</module>
        <module>Reference2</module>
        <module>MainJar</module>
    </modules>
    <build>
        <plugins>
            <plugin>
                <groupId>org.apache.maven.plugins</groupId>
                <artifactId>maven-compiler-plugin</artifactId>
                <version>3.8.1</version>
                <configuration>
                    <source>11</source>
                    <target>11</target>
                </configuration>
            </plugin>
        </plugins>
    </build>
</project>

MainJar pom.xml:


<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <parent>
        <artifactId>ConvertToModularJar_before</artifactId>
        <groupId>net.maxjava</groupId>
        <version>1.0</version>
    </parent>
    <modelVersion>4.0.0</modelVersion>
    <artifactId>MainJar</artifactId>
    <dependencies>
        <dependency>
            <groupId>net.maxjava</groupId>
            <artifactId>Reference2</artifactId>
            <version>1.0</version>
        </dependency>
    </dependencies>
</project>

Reference2 pom.xml:


<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <parent>
        <artifactId>ConvertToModularJar_before</artifactId>
        <groupId>net.maxjava</groupId>
        <version>1.0</version>
    </parent>
    <modelVersion>4.0.0</modelVersion>
    <artifactId>Reference2</artifactId>
    <dependencies>
        <dependency>
            <groupId>net.maxjava</groupId>
            <artifactId>Reference1</artifactId>
            <version>1.0</version>
        </dependency>
    </dependencies>
</project>

Reference1 pom.xml:


<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <parent>
        <artifactId>ConvertToModularJar_before</artifactId>
        <groupId>net.maxjava</groupId>
        <version>1.0</version>
    </parent>
    <modelVersion>4.0.0</modelVersion>
    <artifactId>Reference1</artifactId>
</project>

parent build.gradle:


plugins {
    id 'java'
}

sourceCompatibility = 11
targetCompatibility = 11

group 'net.maxjava'
version '1.0'

repositories {
    mavenCentral()
}

parent settings.gradle:


rootProject.name = 'ConvertToModularJar_before'
include 'MainJar'
include 'Reference1'
include 'Reference2'

MainJar build.gradle:


plugins {
    id 'java'
}

group 'net.maxjava'
version '1.0'

repositories {
    mavenCentral()
}

dependencies {
    implementation project(':Reference2')
}

Reference2 build.gradle:


plugins {
    id 'java'
}

group 'net.maxjava'
version '1.0'

repositories {
    mavenCentral()
}

dependencies {
    implementation project(':Reference1')
}

Reference1 build.gradle:


plugins {
    id 'java'
}

group 'net.maxjava'
version '1.0'

repositories {
    mavenCentral()
}

MainClass.java:


package net.maxjava;

import net.maxjava2.Library2;

public class MainClass {

    public static void main(String[] arg) {

        int radius = 10;

        System.out.println("Area of circle with radius " + radius + " = " + Library2.getArea(radius));
    }
}

Library1.java:


package net.maxjava1;

public class Library1 {

    public static float getPI() {
        return 3.14f;
    }
}

Library2.java:


package net.maxjava2;

import net.maxjava1.Library1;

public class Library2 {

    public static float getArea(int radius) {

        return radius * radius * Library1.getPI();
    }
}

After running the Maven command mvn package, all 3 of the jar files (MainJar-1.0.jar, Reference1-1.0.jar and Reference2-1.0.jar) will be generated, inside the target folder of each of the Maven module respectively.

on Windows, to run the main function, use the command:


java -cp MainJar/target/MainJar-1.0.jar;Reference1/target/Reference1-1.0.jar;Reference2/target/Reference2-1.0.jar net.maxjava.MainClass

on Linux/Mac, to run the main function, use the command:


java -cp MainJar/target/MainJar-1.0.jar:Reference1/target/Reference1-1.0.jar:Reference2/target/Reference2-1.0.jar net.maxjava.MainClass

After running the Gradle command gradle build, all 3 of the jar files (MainJar-1.0.jar, Reference1-1.0.jar and Reference2-1.0.jar) will be generated, inside the build/libs folder of each of the Maven module respectively.

on Windows, to run the main function, use the command:


To run the main function, use the command java -cp MainJar/build/libs/MainJar-1.0.jar;Reference1/build/libs/Reference1-1.0.jar;Reference2/build/libs/Reference2-1.0.jar net.maxjava.MainClass

on Linux/Mac, to run the main function, use the command:


To run the main function, use the command java -cp MainJar/build/libs/MainJar-1.0.jar:Reference1/build/libs/Reference1-1.0.jar:Reference2/build/libs/Reference2-1.0.jar net.maxjava.MainClass

Output:


Area of circle with radius 10 = 314.0

Converting to modular jars:

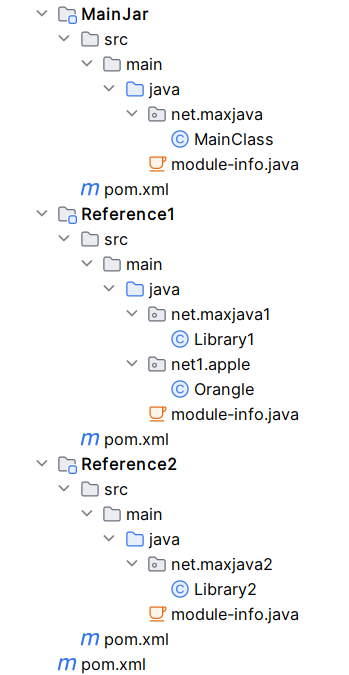

To convert this Jave project (meaning all the 3 Jar files) to modular format, all we need is, for each module, create a file name module-info.java under the package root folder:

In module-info.java, specify a module and the availability of packages under this module. E.g. in Reference1 module-info.java, it exports net.maxjava1 so that this package is available in this module. In Reference2 module-info.java, it exports net.maxjava1 and requires max1 module, meaning net.maxjava2 is available in this module and it requires max1 module for compiling and running. In MainJar module-info.java, it requires max2 module meaning max2 module is needed for compiling and running

There is no need to change any class or package, and the pom/gradle file.

Reference1 module-info.java:


module max1 {
    exports net.maxjava1;
}

Reference2 module-info.java:


module max2 {
    requires max1;
    exports net.maxjava2;
}

MainJar module-info.java:


module max {
    requires max2;
}

The Maven command to build is still mvn package, and still 3 jar files (MainJar-1.0.jar, Reference1-1.0.jar and Reference2-1.0.jar) will be generated, inside the target folder of each of the Maven module respectively.

The command to run has to change, specification of module-paths is needed and main class has to qualified with module name:

on Windows, to run the main function, use the command:


java --module-path Reference1/target/Reference1-1.0.jar;Reference2/target/Reference2-1.0.jar;MainJar/target/MainJar-1.0.jar -m max/net.maxjava.MainClass

on Linux/Mac, to run the main function, use the command:


java --module-path Reference1/target/Reference1-1.0.jar:Reference2/target/Reference2-1.0.jar:MainJar/target/MainJar-1.0.jar -m max/net.maxjava.MainClass

The command to run has to change, specification of module-paths is needed and main class has to qualified with module name:

on Windows, to run the main function, use the command:


java --module-path Reference1/build/libs/Reference1-1.0.jar;Reference2/build/libs/Reference2-1.0.jar;MainJar/build/libs/MainJar-1.0.jar -m max/net.maxjava.MainClass

on Linux/Mac, to run the main function, use the command:


java --module-path Reference1/build/libs/Reference1-1.0.jar:Reference2/build/libs/Reference2-1.0.jar:MainJar/build/libs/MainJar-1.0.jar -m max/net.maxjava.MainClass

Output is the same:


Area of circle with radius 10 = 314.0

If a module is missing in the module-path when running, a java.lang.module.FindException will come

e.g. if module max2 is missing:


java --module-path Reference1/target/Reference1-1.0.jar:MainJar/target/MainJar-1.0.jar -m max/net.maxjava.MainClass

Output:


Error occurred during initialization of boot layer

java.lang.module.FindException: Module max2 not found, required by max

e.g. if module max2 is missing:


java --module-path Reference1/build/libs/Reference1-1.0.jar:MainJar/build/libs/MainJar-1.0.jar -m max/net.maxjava.MainClass

Output:


Error occurred during initialization of boot layer

java.lang.module.FindException: Module max2 not found, required by max
