Complete tutorial of building Spring REST API with Cassandra using Datastax Mapper.

Configuration

Java Compilation:
Java Runtime:
Web Server:
Database:
Maven:

Java Compilation:
Java Runtime:
Web Server:
Database:
Gradle:

JDK 17.0.2
JRE OpenJDK 17.0.2
Tomcat 10.1.16
Cassandra 4.1.5
Maven 3.9.6

JDK 17.0.2
JRE OpenJDK 17.0.2
Tomcat 10.1.16
Cassandra 4.1.5
Gradle 8.6

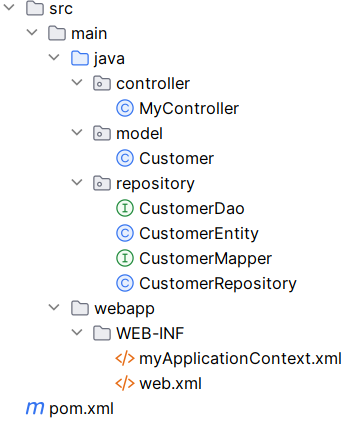

Create the following folder structure:

folder structure of Spring REST API with Cassandra using Datastax Mapper

pom.xml: (if using Gradle, replace pom.xml with build.gradle)


<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>
    <groupId>net.maxjava</groupId>
    <artifactId>SpringRESTAPICassandraDatastaxMapper</artifactId>
    <version>1.0</version>
    <packaging>war</packaging>
    <dependencies>
        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-webmvc</artifactId>
            <version>6.1.6</version>
        </dependency>
        <dependency>
            <groupId>com.fasterxml.jackson.core</groupId>
            <artifactId>jackson-databind</artifactId>
            <version>2.15.4</version>
        </dependency>
        <dependency>
            <groupId>com.datastax.oss</groupId>
            <artifactId>java-driver-mapper-runtime</artifactId>
            <version>4.17.0</version>
        </dependency>
        <dependency>
            <groupId>com.datastax.oss</groupId>
            <artifactId>java-driver-mapper-processor</artifactId>
            <version>4.17.0</version>
            <scope>provided</scope>
        </dependency>
        <dependency>
            <groupId>jakarta.annotation</groupId>
            <artifactId>jakarta.annotation-api</artifactId>
            <version>3.0.0</version>
            <scope>provided</scope>
        </dependency>
        <dependency>
            <groupId>org.projectlombok</groupId>
            <artifactId>lombok</artifactId>
            <version>1.18.30</version>
        </dependency>
    </dependencies>
    <build>
        <plugins>
            <plugin>
                <artifactId>maven-compiler-plugin</artifactId>
                <version>3.13.0</version>
                <configuration>
                    <source>17</source>
                    <target>17</target>
                </configuration>
            </plugin>
        </plugins>
    </build>
</project>


plugins {
    id 'java'
    id 'war'
}

java {
    sourceCompatibility = 17
    targetCompatibility = 17
}

group 'net.maxjava'
version '1.0'

repositories {
    mavenCentral()
}

dependencies {
    implementation group: 'org.springframework', name: 'spring-webmvc', version: '6.1.6'
    implementation group: 'com.fasterxml.jackson.core', name: 'jackson-databind', version: '2.15.4'
    implementation group: 'jakarta.annotation', name: 'jakarta.annotation-api', version: '3.0.0'
    implementation group: 'com.datastax.oss', name: 'java-driver-mapper-runtime', version: '4.17.0'
    compileOnly group: 'com.datastax.oss', name: 'java-driver-mapper-processor', version: '4.17.0'
    annotationProcessor group: 'com.datastax.oss', name: 'java-driver-mapper-processor', version: '4.17.0'
    compileOnly group: 'org.projectlombok', name: 'lombok', version: '1.18.30'
    annotationProcessor group: 'org.projectlombok', name: 'lombok', version: '1.18.30'
}

Some notes about pom.xml:

spring-webmvc for necessary Spring REST controllers and its dependencies
jackson-databind is for the java object serialization and deserialization
java-driver-query-builder and java-driver-mapper-runtime is needed for using Datastax mapper
java-driver-mapper-processor is for processing Datastax mapper annotations
jakarta.annotation-api is needed for annotations like @PostConstruct
lombok to remove boilerplate code like get and set
maven-compiler-plugin is for compiling the code using source version 17 and target version 17
A war artifact will be created for deployment to servlet containers

Some notes about build.gradle:

spring-webmvc for necessary Spring REST controllers and its dependencies
jackson-databind is for the java object serialization and deserialization
java-driver-query-builder and java-driver-mapper-runtime is needed for using Datastax mapper
java-driver-mapper-processor is for processing Datastax mapper annotations
jakarta.annotation-api is needed for annotations like @PostConstruct
lombok to remove boilerplate code like get and set
sourceCompatibility and targetCompatibility is for compiling the code using source version 17 and target version 17
A war artifact will be created for deployment to servlet containers

web.xml:


<web-app>
    <display-name>Spring REST API with Cassandra using Datastax Mapper</display-name>
    <servlet>
        <servlet-name>SpringRESTAPICassandraDatastaxMapper</servlet-name>
        <servlet-class>org.springframework.web.servlet.DispatcherServlet</servlet-class>
        <init-param>
            <param-name>contextConfigLocation</param-name>
            <param-value>/WEB-INF/myApplicationContext.xml</param-value>
        </init-param>
        <load-on-startup>1</load-on-startup>
    </servlet>
    <servlet-mapping>
        <servlet-name>SpringRESTAPICassandraDatastaxMapper</servlet-name>
        <url-pattern>/*</url-pattern>
    </servlet-mapping>
</web-app>

Some notes about web.xml:

org.springframework.web.servlet.DispatcherServlet is the servlet class for Spring
/WEB-INF/myApplicationContext.xml is the location of the Spring context configuration file

myApplicationContext.xml:


<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
       xmlns:context="http://www.springframework.org/schema/context"
       xmlns:mvc="http://www.springframework.org/schema/mvc"
       xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
       xsi:schemaLocation="
	http://www.springframework.org/schema/beans
	http://www.springframework.org/schema/beans/spring-beans.xsd
	http://www.springframework.org/schema/context
	http://www.springframework.org/schema/context/spring-context.xsd
	http://www.springframework.org/schema/mvc
	http://www.springframework.org/schema/mvc/spring-mvc.xsd">
    <context:component-scan base-package="controller,repository"/>
    <mvc:annotation-driven>
        <mvc:message-converters>
            <bean class="org.springframework.http.converter.json.MappingJackson2HttpMessageConverter"/>
        </mvc:message-converters>
    </mvc:annotation-driven>
</beans>

Some notes about myApplicationContext.xml:

<context:component-scan base-package="controller,repository"/> is for Spring to look for classes in specific packages to create beans
<mvc:message-converters> is to specify library for json serialization and deserialization

This tutorial based on the following Cassandra Table structure, assuming the keyspace company exists:


CREATE TABLE company.customer (
    last_name text,
    first_name text,
    created timestamp,
    phone text,
    PRIMARY KEY (last_name, first_name)
);

Some notes about the table:

last_name column is the partition key, while first_name is the clustering key
for this tutorial we just use the partition key (last_name) to retrieve or delete the rows

MyController.java:


package controller;

import repository.CustomerRepository;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.web.bind.annotation.*;
import model.Customer;

import java.util.List;

@RestController
@RequestMapping("/myapp")
public class MyController {

    @Autowired
    private CustomerRepository customerRepository;

    @PutMapping("/customer")
    public void insertCustomer(@RequestBody Customer customer) {

        customerRepository.insertCustomer(customer);
    }

    @GetMapping("/customer")
    public List<Customer> getCustomerByLastName(@RequestParam("lastName") String lastName) {

        List<Customer> customerList = customerRepository.getCustomerByLastName(lastName);

        return customerList;
    }

    @DeleteMapping("/customer")
    public void deleteCustomerByLastName(@RequestParam("lastName") String lastName) {

        customerRepository.deleteCustomerByLastName(lastName);
    }
}

Some notes about MyController.java:

This is Spring REST API which putting @RestController will do the trick (and make sure the package of this class got scanned in bean creation)
This class autowires CassandraRepository which is the bean to interact with the database.
Providing some popular functions like insertCustomer, getCustomerByLastName and deleteCustomerByLastName to show insert, retrieve and delete

Customer.java:


package model;

import lombok.Data;

@Data
public class Customer {

    private String lastName;
    private String firstName;
    private String created;
    private String phone;
}

Some notes about Customer.java:

This is the object used in the request body and response body of the REST APIs

CassandraRepository.java:


package repository;

import com.datastax.oss.driver.api.core.CqlSession;
import com.datastax.oss.driver.api.core.PagingIterable;
import jakarta.annotation.PreDestroy;
import model.Customer;
import org.springframework.stereotype.Repository;

import jakarta.annotation.PostConstruct;
import java.net.InetSocketAddress;
import java.time.Instant;
import java.util.ArrayList;
import java.util.List;

@Repository
public class CustomerRepository {

    private CqlSession cqlSession;
    private final String serverIP = "localhost";
    private final int port = 9042;
    private CustomerDao customerDao;

    @PostConstruct
    private void init() {
        cqlSession = CqlSession.builder()
                .addContactPoint(new InetSocketAddress(serverIP, port))
                .withLocalDatacenter("datacenter1")
                .build();

        CustomerMapper customerMapper = new CustomerMapperBuilder(cqlSession).build();
        customerDao = customerMapper.customerDao("company", "customer");
    }

    @PreDestroy
    private void finish() {

        cqlSession.close();
    }

    public void insertCustomer(Customer customer) {

        CustomerEntity customerEntity = new CustomerEntity();
        customerEntity.setLastName(customer.getLastName());
        customerEntity.setFirstName(customer.getFirstName());
        customerEntity.setCreated(Instant.now());
        customerEntity.setPhone(customer.getPhone());

        customerDao.insertCustomer(customerEntity);
    }

    public List<Customer> getCustomerByLastName(String lastName) {

        List<Customer> customerList = new ArrayList<>();

        PagingIterable<CustomerEntity> customerEntities = customerDao.findByLastName(lastName);

        for (CustomerEntity customerEntity : customerEntities) {

            Customer customer = new Customer();
            customer.setLastName(customerEntity.getLastName());
            customer.setFirstName(customerEntity.getFirstName());
            customer.setCreated(customerEntity.getCreated().toString());
            customer.setPhone(customerEntity.getPhone());

            customerList.add(customer);
        }

        return customerList;
    }

    public void deleteCustomerByLastName(String lastName) {

        customerDao.deleteByLastName(lastName);
    }
}

Some notes about CassandraRepository.java:

@Repository to specify the class as Spring bean
CustomerDao is thread-safe so a single instance is enough for the entire CassandraRepository bean
@PostConstruct to specify init to run when the class is initiated, which is to create the cqlSession, customerMapper and customerDao objects
This class supports insertCustomer, getCustomerByLastName and deleteCustomerByLastName
Assume Cassandra is at localhost 9042, with keyspace "company" created, otherwise please use corresponding values

CustomerDao.java:


package repository;

import com.datastax.oss.driver.api.core.PagingIterable;
import com.datastax.oss.driver.api.mapper.annotations.Dao;
import com.datastax.oss.driver.api.mapper.annotations.Delete;
import com.datastax.oss.driver.api.mapper.annotations.Insert;
import com.datastax.oss.driver.api.mapper.annotations.Select;

@Dao
public interface CustomerDao {

    @Select
    PagingIterable<CustomerEntity> findByLastName(String lastName);

    @Insert
    void insertCustomer(CustomerEntity customer);

    @Delete(entityClass = CustomerEntity.class)
    void deleteByLastName(String lastName);
}

Some notes about CustomerDao.java:

Annotate with @Dao to specify this interface will be used to create the data access object by Datastax Mapper
Annotate the methods with @Select, @Insert and @Delete to specify these methods will be implemented by Datastax Mapper to do Select, Insert and Delete operations on Cassandra

CustomerMapper.java:


package repository;

import com.datastax.oss.driver.api.mapper.annotations.DaoFactory;
import com.datastax.oss.driver.api.mapper.annotations.DaoKeyspace;
import com.datastax.oss.driver.api.mapper.annotations.DaoTable;
import com.datastax.oss.driver.api.mapper.annotations.Mapper;

@Mapper
public interface CustomerMapper {

    @DaoFactory
    CustomerDao customerDao(@DaoKeyspace String keyspace, @DaoTable String table);
}

Some notes about CustomerMapper.java:

Annotate with @Mapper to specify this interface will be used to create the mapper object by Datastax Mapper
Annotate the method with @DaoFactory to specify this method will be implemented to generate a data access object

CustomerEntity.java:


package repository;

import com.datastax.oss.driver.api.mapper.annotations.ClusteringColumn;
import com.datastax.oss.driver.api.mapper.annotations.Entity;
import com.datastax.oss.driver.api.mapper.annotations.PartitionKey;
import java.time.Instant;

@Entity
public class CustomerEntity {

    @PartitionKey
    private String lastName;

    @ClusteringColumn
    private String firstName;

    private Instant created;

    private String phone;

    public String getLastName() {
        return lastName;
    }

    public void setLastName(String lastName) {
        this.lastName = lastName;
    }

    public String getFirstName() {
        return firstName;
    }

    public void setFirstName(String firstName) {
        this.firstName = firstName;
    }

    public Instant getCreated() {
        return created;
    }

    public void setCreated(Instant created) {
        this.created = created;
    }

    public String getPhone() {
        return phone;
    }

    public void setPhone(String phone) {
        this.phone = phone;
    }
}

Some notes about CustomerEntity.java:

Annotate with @Entity to specify this class represents a Cassandra table
Annotate the corresponding fields with @PartitionKey and @ClusteringColumn

Sample requests and responses(assume the war file is deployed to <CONTEXT_PATH>):

Add a new record:


curl --request PUT '<CONTEXT_PATH>/myapp/customer' --header 'Content-Type: application/json' --data-raw '
{
    "firstName": "Ethan",
    "lastName": "Smith",
    "phone": "310-123-1234"
}'

Retrieve the record by last name


curl --request GET '<CONTEXT_PATH>/myapp/customer?lastName=Smith'

Response:


[
  {
    "lastName": "Smith",
    "firstName": "Ethan",
    "created": "Sat Jun 01 23:40:42 PDT 2022",
    "phone": "310-123-1234"
  }
]

Add another record with same last name


curl --request PUT '<CONTEXT_PATH>/myapp/customer' --header 'Content-Type: application/json' --data-raw '
{
    "firstName": "Tom",
    "lastName": "Smith",
    "phone": "650-123-1234"
}'

Retrieve the record by same last name again


curl --request GET '<CONTEXT_PATH>/myapp/customer?lastName=Smith'

Response:


[
  {
    "lastName": "Smith",
    "firstName": "Ethan",
    "created": "Sat Jun 01 23:40:42 PDT 2024",
    "phone": "310-123-1234"
  },
  {
    "lastName": "Smith",
    "firstName": "Tom",
    "created": "Sat Jun 01 23:48:10 PDT 2024",
    "phone": "650-123-1234"
  }
]

Deleting records by the last name


curl --request DELETE '<CONTEXT_PATH>/myapp/customer?lastName=Smith'

Retrieve the record by same last name again


curl --request GET '<CONTEXT_PATH>/myapp/customer?lastName=Smith'

Response status:

[]
