Complete tutorial of building Spring REST API with Hibernate only.

Configuration

Java Compilation:
Java Runtime:
Web Server:
Database:
Maven:

Java Compilation:
Java Runtime:
Web Server:
Database:
Gradle:

JDK 17.0.2
JRE OpenJDK 17.0.2
Tomcat 10.1.16
MySQL 8.0.35
Maven 3.9.6

JDK 17.0.2
JRE OpenJDK 17.0.2
Tomcat 10.1.16
MySQL 8.0.35
Gradle 8.6

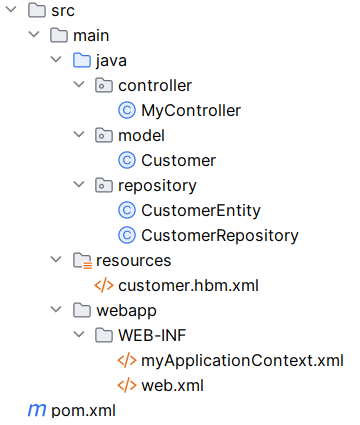

Create the following folder structure:

folder structure of Spring REST API with Hibernate only

pom.xml: (if using Gradle, replace pom.xml with build.gradle)


<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>
    <groupId>net.maxjava</groupId>
    <artifactId>SpringRESTAPIHibernateOnly</artifactId>
    <version>1.0</version>
    <packaging>war</packaging>
    <dependencies>
        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-webmvc</artifactId>
            <version>6.1.6</version>
        </dependency>
        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-orm</artifactId>
            <version>6.1.6</version>
        </dependency>
        <dependency>
            <groupId>com.fasterxml.jackson.core</groupId>
            <artifactId>jackson-databind</artifactId>
            <version>2.15.4</version>
        </dependency>
        <dependency>
            <groupId>mysql</groupId>
            <artifactId>mysql-connector-java</artifactId>
            <version>8.0.33</version>
        </dependency>
        <dependency>
            <groupId>org.hibernate</groupId>
            <artifactId>hibernate-core</artifactId>
            <version>5.3.10.Final</version>
        </dependency>
        <dependency>
            <groupId>org.hibernate</groupId>
            <artifactId>hibernate-c3p0</artifactId>
            <version>6.5.2.Final</version>
        </dependency>
        <dependency>
            <groupId>org.projectlombok</groupId>
            <artifactId>lombok</artifactId>
            <version>1.18.30</version>
        </dependency>
    </dependencies>
    <build>
        <plugins>
            <plugin>
                <artifactId>maven-compiler-plugin</artifactId>
                <version>3.13.0</version>
                <configuration>
                    <source>17</source>
                    <target>17</target>
                </configuration>
            </plugin>
        </plugins>
    </build>
</project>


plugins {
    id 'java'
    id 'war'
}

java {
    sourceCompatibility = 17
    targetCompatibility = 17
}

group 'net.maxjava'
version '1.0'

repositories {
    mavenCentral()
}

dependencies {
    implementation group: 'org.springframework', name: 'spring-webmvc', version: '6.1.6'
    implementation group: 'org.springframework', name: 'spring-orm', version: '6.1.6'
    implementation group: 'com.fasterxml.jackson.core', name: 'jackson-databind', version: '2.15.4'
    implementation group: 'mysql', name: 'mysql-connector-java', version: '8.0.33'
    implementation group: 'org.hibernate', name: 'hibernate-core', version: '6.5.2.Final'
    implementation group: 'org.hibernate', name: 'hibernate-c3p0', version: '6.5.2.Final'
    compileOnly group: 'org.projectlombok', name: 'lombok', version: '1.18.30'
    annotationProcessor group: 'org.projectlombok', name: 'lombok', version: '1.18.30'
}

Some notes about pom.xml:

spring-webmvc for necessary Spring REST controllers and its dependencies
spring-orm for Hibernate session related classes like session factories
jackson-databind is for the java object serialization and deserialization
hibernate-core for Hibernate classes
hibernate-c3p0 is for datasource
lombok to remove boilerplate code like get and set
maven-compiler-plugin is for compiling the code using source version 17 and target version 17
A war artifact will be created for deployment to servlet containers

Some notes about build.gradle:

spring-webmvc for necessary Spring REST controllers and its dependencies
spring-orm for Hibernate session related classes like session factories
jackson-databind is for the java object serialization and deserialization
hibernate-core for Hibernate classes
hibernate-c3p0 is for datasource
lombok to remove boilerplate code like get and set
sourceCompatibility and targetCompatibility is for compiling the code using source version 17 and target version 17
A war artifact will be created for deployment to servlet containers

web.xml:


<web-app>
    <display-name>Spring REST API with Hibernate</display-name>
    <servlet>
        <servlet-name>SpringRESTAPIHibernate</servlet-name>
        <servlet-class>org.springframework.web.servlet.DispatcherServlet</servlet-class>
        <init-param>
            <param-name>contextConfigLocation</param-name>
            <param-value>/WEB-INF/myApplicationContext.xml</param-value>
        </init-param>
        <load-on-startup>1</load-on-startup>
    </servlet>
    <servlet-mapping>
        <servlet-name>SpringRESTAPIHibernate</servlet-name>
        <url-pattern>/*</url-pattern>
    </servlet-mapping>
</web-app>

Some notes about web.xml:

org.springframework.web.servlet.DispatcherServlet is the servlet class for Spring
/WEB-INF/myApplicationContext.xml is the location of the Spring context configuration file

myApplicationContext.xml:


<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
       xmlns:context="http://www.springframework.org/schema/context"
       xmlns:mvc="http://www.springframework.org/schema/mvc"
       xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
       xmlns:tx="http://www.springframework.org/schema/tx"
       xsi:schemaLocation="
	http://www.springframework.org/schema/beans
	http://www.springframework.org/schema/beans/spring-beans.xsd
    http://www.springframework.org/schema/context
	http://www.springframework.org/schema/context/spring-context.xsd
    http://www.springframework.org/schema/mvc
    http://www.springframework.org/schema/mvc/spring-mvc.xsd
    http://www.springframework.org/schema/tx
    http://www.springframework.org/schema/tx/spring-tx.xsd">
    <context:component-scan base-package="controller,repository" />
    <tx:annotation-driven transaction-manager="transactionManager"/>
    <mvc:annotation-driven>
        <mvc:message-converters>
            <bean class="org.springframework.http.converter.json.MappingJackson2HttpMessageConverter"/>
        </mvc:message-converters>
    </mvc:annotation-driven>
    <bean id="dataSource" class="com.mchange.v2.c3p0.ComboPooledDataSource">
        <property name="driverClass" value="com.mysql.cj.jdbc.Driver"/>
        <property name="jdbcUrl" value="jdbc:mysql://localhost:3306/mydb"/>
        <property name="user" value="myuser"/>
        <property name="password" value="mypassword"/>
        <property name="initialPoolSize" value="10"/>
    </bean>
    <bean id="sessionFactory" class="org.springframework.orm.hibernate5.LocalSessionFactoryBean">
        <property name="dataSource" ref="dataSource"/>
        <property name="mappingResources">
            <list>
                <value>customer.hbm.xml</value>
            </list>
        </property>
    </bean>
    <bean id="transactionManager" class="org.springframework.orm.hibernate5.HibernateTransactionManager">
        <property name="sessionFactory" ref="sessionFactory"/>
    </bean>
</beans>

Some notes about myApplicationContext.xml:

<context:component-scan base-package="controller,repository"/> is for Spring to look for classes in controller,repository packages to create beans
<tx:annotation-driven transaction-manager="transactionManager"/> is to allow Spring to use annotation for transaction management, and the transaction-manager is the bean org.springframework.orm.hibernate5.HibernateTransactionManager defined below
<mvc:message-converters> is to specify library for json serialization and deserialization
<bean id="dataSource" class="com.mchange.v2.c3p0.ComboPooledDataSource"> is to specify the datasource for use in LocalSessionFactoryBean
<bean id="sessionFactory" class="org.springframework.orm.hibernate5.LocalSessionFactoryBean"> is to create LocalSessionFactoryBean for autowiring in the code to create Hibernate Session

customer.hbm.xml:


<?xml version='1.0' encoding='UTF-8'?>
<!DOCTYPE hibernate-mapping PUBLIC "-//Hibernate/Hibernate Mapping DTD 3.0//EN" "http://hibernate.org/dtd/hibernate-mapping-3.0.dtd">
<hibernate-mapping>
    <class name="repository.CustomerEntity" table="customer">
        <id name="name" type="string">
            <column name="Name"/>
        </id>
        <property name="email" type="string">
            <column name="Email"/>
        </property>
        <property name="createdDate" type="timestamp">
            <column name="CreatedDate"/>
        </property>
    </class>
</hibernate-mapping>

Some notes about customer.hbm.xml:

The mapping is based on the following table schema:


CREATE TABLE customer (
	Name VARCHAR(50) NOT NULL,
	Email VARCHAR(50) NULL DEFAULT NULL,
	CreatedDate TIMESTAMP NULL DEFAULT NULL,
	PRIMARY KEY (Name)
)

MyController.java:


package controller;

import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.web.bind.annotation.*;
import model.Customer;
import repository.CustomerRepository;

@RestController
@RequestMapping("/myapp")
public class MyController {

    @Autowired
    private CustomerRepository customerRepository;

    @GetMapping("/customer")
    public Customer getCustomer(@RequestParam("name") String name) {

        Customer customer = customerRepository.getCustomerByName(name);

        return customer;
    }

    @PostMapping("/customer")
    public void postCustomer(@RequestBody Customer customer) {

        customerRepository.saveCustomer(customer);
    }

    @PutMapping("/customer")
    public void putCustomer(@RequestBody Customer customer) {

        customerRepository.updateCustomer(customer);
    }

    @DeleteMapping("/customer")
    public void deleteCustomer(@RequestParam("name") String name) {

        customerRepository.deleteCustomerByName(name);
    }
}

Some notes about MyController.java:

This is the Spring REST web service which putting @RestController will do the trick (and make sure the package of this class got scanned in bean creation)
Autowires CustomerRepository which is the bean to interact with the database
Provides basic CRUD REST APIs and autowires CustomerRepository to interact with the database

Customer.java:


package model;

import lombok.Data;

@Data
public class Customer {

    private String name;
    private String email;
}

Some notes about Customer.java:

This is the object used in the request body and response body of the REST APIs

CustomerEntity.java:


package repository;

import lombok.Data;
import java.util.Date;

@Data
public class CustomerEntity {

    private String name;
    private String email;
    private Date createdDate;
}

Some notes about CustomerEntity.java:

This is the mapped class for table "Customer"

CustomerRepository.java:


package repository;

import model.Customer;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.*;
import org.hibernate.SessionFactory;
import org.springframework.transaction.annotation.Transactional;
import java.util.Date;

@Repository
public class CustomerRepository {

    @Autowired
    private SessionFactory sessionFactory;

    @Transactional
    public Customer getCustomerByName(String name) {

        CustomerEntity customerEntity = sessionFactory.getCurrentSession().get(CustomerEntity.class, name);
        Customer customer = new Customer();
        customer.setEmail(customerEntity.getEmail());
        customer.setName(customerEntity.getName());

        return customer;
    }

    @Transactional
    public void saveCustomer(Customer customer) {

        CustomerEntity customerEntity = new CustomerEntity();
        customerEntity.setName(customer.getName());
        customerEntity.setEmail(customer.getEmail());
        customerEntity.setCreatedDate(new Date());

        sessionFactory.getCurrentSession().save(customerEntity);
    }

    @Transactional
    public void updateCustomer(Customer customer) {

        CustomerEntity customerEntity = new CustomerEntity();
        customerEntity.setName(customer.getName());
        customerEntity.setEmail(customer.getEmail());
        customerEntity.setCreatedDate(new Date());

        sessionFactory.getCurrentSession().update(customerEntity);
    }

    @Transactional
    public void deleteCustomerByName(String name) {

        CustomerEntity customerEntity = new CustomerEntity();
        customerEntity.setName(name);

        sessionFactory.getCurrentSession().delete(customerEntity);
    }
}

Some notes about CustomerDao.java:

Autowires the Hibernate SessionFactory bean
Put @Transactional around each Hibernate function, even for get, as transaction is needed for get for Hibernate
Mark this with @Repository as a bean

Sample requests and responses(assume the war file is deployed to <CONTEXT_PATH>):

Add a new record:


curl --request POST '<CONTEXT_PATH>/myapp/customer' --header 'Content-Type: application/json' --data-raw '
{
  "name": "Ethan",
  "email": "ethan@maxjava.net"
}'

Retrieve a record by name


curl --request GET '<CONTEXT_PATH>/myapp/customer?name=Ethan'

Response:


{
    "name": "Ethan",
    "email": "ethan@maxjava.net"
}

Updating a record by name


curl --request PUT '<CONTEXT_PATH>/myapp/customer' --header 'Content-Type: application/json' --data-raw '
{
  "name": "Ethan",
  "email": "ethan.new@maxjava.net"
}'

Retrieve the record again by same name, the data is changed


curl --request GET '<CONTEXT_PATH>myapp/customer?name=Ethan'

Response:


{
    "name": "Ethan",
    "email": "ethan.new@maxjava.net"
}

deleting a record by name


curl --request DELETE '<CONTEXT_PATH>/myapp/customer?name=Ethan'
