Complete tutorial of building Spring REST API with MongoDB using MongoClient.

Configuration

Java Compilation:
Java Runtime:
Web Server:
Database:
Maven:

Java Compilation:
Java Runtime:
Web Server:
Database:
Gradle:

JDK 17.0.2
JRE OpenJDK 17.0.2
Tomcat 10.1.16
MongoDB 6.0.13
Maven 3.9.6

JDK 17.0.2
JRE OpenJDK 17.0.2
Tomcat 10.1.16
MongoDB 6.0.13
Gradle 8.6

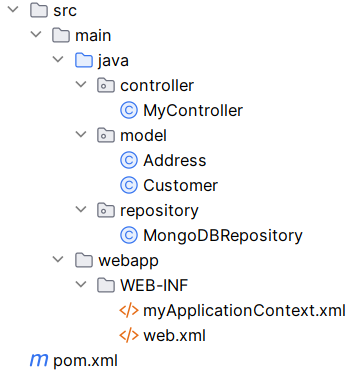

Create the following folder structure:

folder structure of Spring REST API with MongoDB using MongoClient

pom.xml: (if using Gradle, replace pom.xml with build.gradle)


<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>
    <groupId>net.maxjava</groupId>
    <artifactId>SpringRESTAPIMongoClient</artifactId>
    <version>1.0</version>
    <packaging>war</packaging>
    <dependencies>
        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-webmvc</artifactId>
            <version>6.1.6</version>
        </dependency>
        <dependency>
            <groupId>com.fasterxml.jackson.core</groupId>
            <artifactId>jackson-databind</artifactId>
            <version>2.15.4</version>
        </dependency>
        <dependency>
            <groupId>org.mongodb</groupId>
            <artifactId>mongo-java-driver</artifactId>
            <version>3.12.14</version>
        </dependency>
        <dependency>
            <groupId>jakarta.annotation</groupId>
            <artifactId>jakarta.annotation-api</artifactId>
            <version>3.0.0</version>
            <scope>provided</scope>
        </dependency>
        <dependency>
            <groupId>org.projectlombok</groupId>
            <artifactId>lombok</artifactId>
            <version>1.18.30</version>
        </dependency>
    </dependencies>
    <build>
        <plugins>
            <plugin>
                <artifactId>maven-compiler-plugin</artifactId>
                <version>3.13.0</version>
                <configuration>
                    <source>17</source>
                    <target>17</target>
                </configuration>
            </plugin>
        </plugins>
    </build>
</project>


plugins {
    id 'java'
    id 'war'
}

java {
    sourceCompatibility = 17
    targetCompatibility = 17
}

group 'net.maxjava'
version '1.0'

repositories {
    mavenCentral()
}

dependencies {
    implementation group: 'org.springframework', name: 'spring-webmvc', version: '6.1.6'
    implementation group: 'com.fasterxml.jackson.core', name: 'jackson-databind', version: '2.15.4'
    implementation group: 'org.mongodb', name: 'mongo-java-driver', version: '3.12.14'
    implementation group: 'jakarta.annotation', name: 'jakarta.annotation-api', version: '3.0.0'
    compileOnly group: 'org.projectlombok', name: 'lombok', version: '1.18.30'
    annotationProcessor group: 'org.projectlombok', name: 'lombok', version: '1.18.30'
}

Some notes about pom.xml:

spring-webmvc for necessary Spring REST controllers and its dependencies
jackson-databind is for the java object serialization and deserialization
mongo-java-driver is for MongoDB client libraries
jakarta.annotation-api is needed for annotations like @PostConstruct
lombok to remove boilerplate code like get and set
maven-compiler-plugin is for compiling the code using source version 17 and target version 17
A war artifact will be created for deployment to servlet containers

Some notes about build.gradle:

spring-webmvc for necessary Spring REST controllers and its dependencies
jackson-databind is for the java object serialization and deserialization
mongo-java-driver is for MongoDB client libraries
jakarta.annotation-api is needed for annotations like @PostConstruct
lombok to remove boilerplate code like get and set
sourceCompatibility and targetCompatibility is for compiling the code using source version 17 and target version 17
A war artifact will be created for deployment to servlet containers

web.xml:


<web-app>
    <display-name>Spring REST API with MongoDB Client</display-name>
    <servlet>
        <servlet-name>SpringRESTAPIMongoDBClient</servlet-name>
        <servlet-class>org.springframework.web.servlet.DispatcherServlet</servlet-class>
        <init-param>
            <param-name>contextConfigLocation</param-name>
            <param-value>/WEB-INF/myApplicationContext.xml</param-value>
        </init-param>
        <load-on-startup>1</load-on-startup>
    </servlet>
    <servlet-mapping>
        <servlet-name>SpringRESTAPIMongoDBClient</servlet-name>
        <url-pattern>/*</url-pattern>
    </servlet-mapping>
</web-app>

Some notes about web.xml:

org.springframework.web.servlet.DispatcherServlet is the servlet class for Spring
/WEB-INF/myApplicationContext.xml is the location of the Spring context configuration file

myApplicationContext.xml:


<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
       xmlns:context="http://www.springframework.org/schema/context"
       xmlns:mvc="http://www.springframework.org/schema/mvc"
       xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
       xsi:schemaLocation="
	http://www.springframework.org/schema/beans
	http://www.springframework.org/schema/beans/spring-beans.xsd
    http://www.springframework.org/schema/context
	http://www.springframework.org/schema/context/spring-context.xsd
    http://www.springframework.org/schema/mvc
    http://www.springframework.org/schema/mvc/spring-mvc.xsd">
    <context:component-scan base-package="controller,repository"/>
    <mvc:annotation-driven>
        <mvc:message-converters>
            <bean class="org.springframework.http.converter.json.MappingJackson2HttpMessageConverter"/>
        </mvc:message-converters>
    </mvc:annotation-driven>
</beans>

Some notes about myApplicationContext.xml:

<context:component-scan base-package="controller,repository"/> is for Spring to look for classes in specific packages to create beans
<mvc:message-converters> is to specify library for json serialization and deserialization

This tutorial based on the Mongo DB having a database "mydb" with an user "myuser" and password "mypassword" having the "readWrite" role. The user could be created by:


db.createUser(
{
    user: "myuser",
    pwd: "mypassword",
    roles: [
        { role: "readWrite", db: "mydb" }
    ]
});

Create a collection "mycollection" if not exists:


db.createCollection("mycollection");

and the index:


db.mycollection.createIndex({"lastName":1});

MyController.java:


package controller;

import model.Customer;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.web.bind.annotation.*;
import repository.MongoDBRepository;
import java.util.List;

@RestController
@RequestMapping("/myapp")
public class MyController {

    @Autowired
    MongoDBRepository mongoDBRepository;

    @PostMapping("/customer")
    public void insertCustomer(@RequestBody Customer customer) {
        mongoDBRepository.insertCustomer(customer);
    }

    @PutMapping("/customer")
    public void updateCustomerByLastName(@RequestBody Customer customer) {
        mongoDBRepository.updateCustomerByLastName(customer);
    }

    @GetMapping("/customer")
    public List<Customer> getCustomerByLastName(@RequestParam("lastName") String lastName) {

        List<Customer> customerList = mongoDBRepository.getCustomerByLastName(lastName);

        return customerList;
    }

    @DeleteMapping("/customer")
    public void deleteCustomerByLastName(@RequestParam("lastName") String lastName) {

        mongoDBRepository.deleteCustomerByLastName(lastName);
    }
}

Some notes about MyController.java:

This is Spring REST API which putting @RestController will do the trick (and make sure the package of this class got scanned in bean creation)
Autowires MongoDBRepository which is the bean to interact with the database.
This class provides insertCustomer, updateCustomerByLastName, getCustomerByLastName and deleteCustomerByLastName functions to show some basic operations on data

Customer.java:


package model;

import lombok.Data;

@Data
public class Customer {

    private String _id;
    private String lastName;
    private String firstName;
    private Address address;
    private String phone;
    private String email;
}

Some notes about Customer.java:

This is the object used in the request body and response body of the REST APIs

Address.java:


package model;

import lombok.Data;

@Data
public class Address {

    private String street;
    private String city;
    private String state;
    private Integer zipCode;
}

Some notes about Address.java:

This is used in the Customer class

MongoDBRepository.java:


package repository;

import com.mongodb.*;
import com.mongodb.client.*;
import com.mongodb.client.MongoClient;
import model.Address;
import model.Customer;
import org.bson.conversions.Bson;
import org.springframework.stereotype.Repository;
import org.bson.Document;

import jakarta.annotation.PostConstruct;
import java.util.ArrayList;
import java.util.Iterator;
import java.util.List;

import static com.mongodb.client.model.Filters.eq;
import static com.mongodb.client.model.Updates.*;

@Repository
public class MongoDBRepository {

    private MongoCollection<Document> mongoCollection;

    @PostConstruct
    public void init() {

        char[] password = {'m', 'y', 'p', 'a', 's', 's', 'w', 'o', 'r', 'd'};

        MongoCredential credential = MongoCredential.createCredential("myuser", "mydb", password);

        ConnectionString connectionString = new ConnectionString("mongodb://localhost:27017/?connectTimeoutMS=5000&serverSelectionTimeoutMS=20000");

        MongoClientSettings settings = MongoClientSettings.builder().applyConnectionString(connectionString).credential(credential).build();

        MongoClient mongoClient = MongoClients.create(settings);

        MongoDatabase mongoDatabase = mongoClient.getDatabase("mydb");
        mongoCollection = mongoDatabase.getCollection("mycollection");
    }

    public void insertCustomer(Customer customer) {

        Document documentCustomer = new Document()
                .append("lastName", customer.getLastName())
                .append("firstName", customer.getFirstName())
                .append("email", customer.getEmail())
                .append("phone", customer.getPhone());

        if (customer.getAddress() != null) {
            Document documentAddress = new Document()
                    .append("street", customer.getAddress().getStreet())
                    .append("city", customer.getAddress().getCity())
                    .append("state", customer.getAddress().getState())
                    .append("zipCode", customer.getAddress().getZipCode());
            documentCustomer.append("address", documentAddress);
        }

        mongoCollection.insertOne(documentCustomer);
    }

    public void updateCustomerByLastName(Customer customer) {

        Bson bsonFilter = eq("lastName", customer.getLastName());

        List<Bson> bsonList = new ArrayList<>();

        if (customer.getFirstName() != null) {
            bsonList.add(set("firstName", customer.getFirstName()));
        }
        if (customer.getEmail() != null) {
            bsonList.add(set("email", customer.getEmail()));
        }
        if (customer.getPhone() != null) {
            bsonList.add(set("phone", customer.getPhone()));
        }
        if (customer.getAddress() != null) {

            Document bsonAddress = new Document()
                    .append("street", customer.getAddress().getStreet())
                    .append("city", customer.getAddress().getCity())
                    .append("state", customer.getAddress().getState())
                    .append("zipCode", customer.getAddress().getZipCode());

            bsonList.add(set("address", bsonAddress));
        }

        Bson bsonUpdate = combine(bsonList);

        mongoCollection.updateMany(bsonFilter, bsonUpdate);
    }

    public List<Customer> getCustomerByLastName(String lastName) {

        List<Customer> customerList = new ArrayList<>();

        Iterator<Document> it = mongoCollection.find(new Document("lastName", lastName)).iterator();
        while (it.hasNext()) {
            Document documentCustomer = it.next();

            Document documentAddress = (Document)documentCustomer.get("address");

            Address address = new Address();
            address.setStreet(documentAddress.get("street").toString());
            address.setCity(documentAddress.get("city").toString());
            address.setState(documentAddress.get("state").toString());
            address.setZipCode((Integer)documentAddress.get("zipCode"));

            Customer customer = new Customer();
            customer.set_id(documentCustomer.get("_id").toString());
            customer.setLastName(documentCustomer.get("lastName").toString());
            customer.setFirstName(documentCustomer.get("firstName").toString());
            customer.setPhone(documentCustomer.get("phone").toString());
            customer.setEmail(documentCustomer.get("email").toString());
            customer.setAddress(address);

            customerList.add(customer);
        }

        return customerList;
    }

    public void deleteCustomerByLastName(String lastName) {

        mongoCollection.deleteMany(new Document("lastName", lastName));
    }
}

Some notes about MongoDBRepository.java:

@Repository to specify the class as Spring bean
@PostConstruct to specify init() to run when the class is initiated, which is to create the mongoCollection object
This class supports insertCustomer, updateCustomerByLastName, getCustomerByLastName and deleteCustomerByLastName
Assume MongoDB is at localhost 27017, otherwise please use corresponding values

Sample requests and responses(assume the war file is deployed to <CONTEXT_PATH>):

Add a new record:


curl --request POST '<CONTEXT_PATH>/myapp/customer' --header 'Content-Type: application/json' --data-raw '
{
  "lastName": "Smith",
  "firstName": "Ethan",
  "email": "ethan.smith@maxjava.net",
  "phone": "650-123-1234",
  "address": {
      "street": "54321 Doyle Rd",
      "city": "Lexington",
      "state": "KY",
      "zipCode": 56789
  }
}'

Retrieve the record by last name


curl --request GET '<CONTEXT_PATH>/myapp/customer?lastName=Smith'

Response:


[
  {
    "_id": "62ad3907b7a6aa67e211fc12",
    "lastName": "Smith",
    "firstName": "Ethan",
    "address": {
      "street": "54321 Doyle Rd",
      "city": "Lexington",
      "state": "KY",
      "zipCode": 56789
    },
    "phone": "650-123-1234",
    "email": "ethan.smith@maxjava.net"
  }
]

Update the record by using the last name


curl --request PUT '<CONTEXT_PATH>/myapp/customer' --header 'Content-Type: application/json' --data-raw '{
    "lastName": "Smith",
    "phone": "669-123-1234"
}'

Retrieve the record by same last name again


curl --request GET '<CONTEXT_PATH>/myapp/customer?lastName=Smith'

Response:


[
  {
    "_id": "62ad3907b7a6aa67e211fc12",
    "lastName": "Smith",
    "firstName": "Ethan",
    "address": {
      "street": "54321 Doyle Rd",
      "city": "Lexington",
      "state": "KY",
      "zipCode": 56789
    },
    "phone": "669-123-1234",
    "email": "ethan.smith@maxjava.net"
  }
]

Deleting records by the last name


curl --request DELETE '<CONTEXT_PATH>/myapp/customer?lastName=Smith'

Retrieve the record by same last name again


curl --request GET '<CONTEXT_PATH>/myapp/customer?lastName=Smith'

Response:

[]
