Complete tutorial of building Spring REST API with MongoDB using Spring Data.

Configuration

Java Compilation:
Java Runtime:
Web Server:
Database:
Maven:

Java Compilation:
Java Runtime:
Web Server:
Database:
Gradle:

JDK 17.0.2
JRE OpenJDK 17.0.2
Tomcat 10.1.16
MongoDB 6.0.13
Maven 3.9.6

JDK 17.0.2
JRE OpenJDK 17.0.2
Tomcat 10.1.16
MongoDB 6.0.13
Gradle 8.6

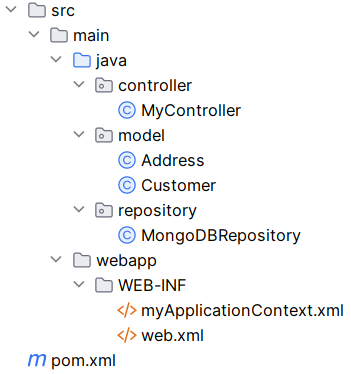

Create the following folder structure:

folder structure of Spring REST API with MongoDB using Spring Data

pom.xml: (if using Gradle, replace pom.xml with build.gradle)


<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>
    <groupId>net.maxjava</groupId>
    <artifactId>SpringRESTAPIMongoTemplate</artifactId>
    <version>1.0</version>
    <packaging>war</packaging>
    <dependencies>
        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-webmvc</artifactId>
            <version>6.1.6</version>
        </dependency>
        <dependency>
            <groupId>org.springframework.data</groupId>
            <artifactId>spring-data-mongodb</artifactId>
            <version>4.3.0</version>
        </dependency>
        <dependency>
            <groupId>org.mongodb</groupId>
            <artifactId>mongodb-driver-sync</artifactId>
            <version>5.0.1</version>
        </dependency>
        <dependency>
            <groupId>com.fasterxml.jackson.core</groupId>
            <artifactId>jackson-databind</artifactId>
            <version>2.15.4</version>
        </dependency>
        <dependency>
            <groupId>jakarta.annotation</groupId>
            <artifactId>jakarta.annotation-api</artifactId>
            <version>3.0.0</version>
            <scope>provided</scope>
        </dependency>
        <dependency>
            <groupId>org.projectlombok</groupId>
            <artifactId>lombok</artifactId>
            <version>1.18.30</version>
        </dependency>
    </dependencies>
    <build>
        <plugins>
            <plugin>
                <artifactId>maven-compiler-plugin</artifactId>
                <version>3.13.0</version>
                <configuration>
                    <source>17</source>
                    <target>17</target>
                </configuration>
            </plugin>
        </plugins>
    </build>
</project>


plugins {
    id 'java'
    id 'war'
}

java {
    sourceCompatibility = 17
    targetCompatibility = 17
}

group 'net.maxjava'
version '1.0'

repositories {
    mavenCentral()
}

dependencies {
    implementation group: 'org.springframework', name: 'spring-webmvc', version: '6.1.6'
    implementation group: 'com.fasterxml.jackson.core', name: 'jackson-databind', version: '2.15.4'
    implementation group: 'org.springframework.data', name: 'spring-data-mongodb', version: '4.3.0'
    implementation group: 'org.mongodb', name: 'mongodb-driver-sync', version: '5.0.1'
    implementation group: 'jakarta.annotation', name: 'jakarta.annotation-api', version: '3.0.0'
    compileOnly group: 'org.projectlombok', name: 'lombok', version: '1.18.30'
    annotationProcessor group: 'org.projectlombok', name: 'lombok', version: '1.18.30'
}

Some notes about pom.xml:

spring-webmvc for necessary Spring REST controllers and its dependencies
jackson-databind is for the java object serialization and deserialization
spring-data-mongodb for using Spring MongoTemplate and other Spring Data MongoDB libraries
mongodb-driver-sync for connection to MongoDB
jakarta.annotation-api is needed for annotations like @PostConstruct
lombok to remove boilerplate code like get and set
maven-compiler-plugin is for compiling the code using source version 17 and target version 17
A war artifact will be created for deployment to servlet containers

Some notes about build.gradle:

spring-webmvc for necessary Spring REST controllers and its dependencies
jackson-databind is for the java object serialization and deserialization
spring-data-mongodb for using Spring MongoTemplate and other Spring Data MongoDB libraries
mongodb-driver-sync for connection to MongoDB
jakarta.annotation-api is needed for annotations like @PostConstruct
lombok to remove boilerplate code like get and set
sourceCompatibility and targetCompatibility is for compiling the code using source version 17 and target version 17
A war artifact will be created for deployment to servlet containers

web.xml:


<web-app>
    <display-name>Spring REST API using MongoTemplate</display-name>
    <servlet>
        <servlet-name>SpringRESTAPIMongoTemplate</servlet-name>
        <servlet-class>org.springframework.web.servlet.DispatcherServlet</servlet-class>
        <init-param>
            <param-name>contextConfigLocation</param-name>
            <param-value>/WEB-INF/myApplicationContext.xml</param-value>
        </init-param>
        <load-on-startup>1</load-on-startup>
    </servlet>
    <servlet-mapping>
        <servlet-name>SpringRESTAPIMongoTemplate</servlet-name>
        <url-pattern>/*</url-pattern>
    </servlet-mapping>
</web-app>

Some notes about web.xml:

org.springframework.web.servlet.DispatcherServlet is the servlet class for Spring
/WEB-INF/myApplicationContext.xml is the location of the Spring context configuration file

myApplicationContext.xml:


<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
       xmlns:context="http://www.springframework.org/schema/context"
       xmlns:mvc="http://www.springframework.org/schema/mvc"
       xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
       xsi:schemaLocation="
	http://www.springframework.org/schema/beans
	http://www.springframework.org/schema/beans/spring-beans.xsd
    http://www.springframework.org/schema/context
	http://www.springframework.org/schema/context/spring-context.xsd
    http://www.springframework.org/schema/mvc
    http://www.springframework.org/schema/mvc/spring-mvc.xsd">
    <context:component-scan base-package="controller,repository"/>
    <mvc:annotation-driven>
        <mvc:message-converters>
            <bean class="org.springframework.http.converter.json.MappingJackson2HttpMessageConverter"/>
        </mvc:message-converters>
    </mvc:annotation-driven>
</beans>

Some notes about myApplicationContext.xml:

<context:component-scan base-package="controller,repository"/> is for Spring to look for classes in specific packages to create beans
<mvc:message-converters> is to specify library for json serialization and deserialization

This tutorial based on the Mongo DB having a database "mydb" with an user "myuser" and password "mypassword" having the "readWrite" role. The user could be created by:


db.createUser(
{
    user: "myuser",
    pwd: "mypassword",
    roles: [
        { role: "readWrite", db: "mydb" }
    ]
});

Create a collection "mycollection" if not exists:


db.createCollection("mycollection");

and the index:


db.mycollection.createIndex({"lastName":1});

MyController.java:


package controller;

import repository.MongoDBRepository;
import model.Customer;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.web.bind.annotation.*;

import java.util.List;

@RestController
@RequestMapping("/myapp")
public class MyController {

    @Autowired
    MongoDBRepository mongodbRepository;

    @PostMapping("/customer")
    public void insertCustomer(@RequestBody Customer customer) {

        mongodbRepository.insertCustomer(customer);
    }

    @GetMapping("/customer")
    public List<Customer> getCustomerByLastName(@RequestParam("lastName") String lastName) {

        List<Customer> customerList = mongodbRepository.getCustomerByLastName(lastName);

        return customerList;
    }

    @PutMapping("/customer")
    public void updateCustomerByLastName(@RequestBody Customer customer) {

        mongodbRepository.updateCustomerByLastName(customer);
    }

    @DeleteMapping("/customer")
    public void deleteCustomerByLastName(@RequestParam("lastName") String lastName) {

        mongodbRepository.deleteCustomerByLastName(lastName);
    }
}

Some notes about MyController.java:

This is Spring REST API which putting @RestController will do the trick (and make sure the package of this class got scanned in bean creation)
Autowires MongoDBRepository which is the bean to interact with the database.
This class provides insertCustomer, updateCustomerByLastName, getCustomerByLastName and deleteCustomerByLastName functions to show some basic operations on data

Customer.java:


package model;

import lombok.Data;

@Data
public class Customer {

    private String _id;
    private String lastName;
    private String firstName;
    private Address address;
    private String phone;
    private String email;
}

Some notes about Customer.java:

This is the object used in the request body and response body of the REST APIs

Address.java:


package model;

import lombok.Data;

@Data
public class Address {

    private String street;
    private String city;
    private String state;
    private Integer zipCode;
}

Some notes about Address.java:

This is used in the Customer class

MongoDBRepository.java:


package repository;

import com.mongodb.ConnectionString;
import model.Customer;
import org.springframework.data.mongodb.MongoDatabaseFactory;
import org.springframework.data.mongodb.core.MongoTemplate;
import org.springframework.data.mongodb.core.SimpleMongoClientDatabaseFactory;
import org.springframework.data.mongodb.core.query.Criteria;
import org.springframework.data.mongodb.core.query.Query;
import org.springframework.data.mongodb.core.query.Update;
import org.springframework.stereotype.Repository;

import jakarta.annotation.PostConstruct;
import java.util.List;

@Repository
public class MongoDBRepository {

    private MongoTemplate mongoTemplate;

    @PostConstruct
    public void init() {

        ConnectionString connectionString = new ConnectionString("mongodb://myuser:mypassword@localhost:27017/mydb?connectTimeoutMS=5000&serverSelectionTimeoutMS=20000");

        MongoDatabaseFactory mongoDbFactory = new SimpleMongoClientDatabaseFactory(connectionString);

        mongoTemplate = new MongoTemplate(mongoDbFactory);
    }

    public void insertCustomer(Customer customer) {

        mongoTemplate.insert(customer, "mycollection");
    }

    public List getCustomerByLastName(String lastName) {

        List customerList = mongoTemplate.find(Query.query(Criteria.where("lastName").is(lastName)), Customer.class, "mycollection");

        return customerList;
    }

    public void updateCustomerByLastName(Customer customer) {

        Update update = new Update();

        if (customer.getFirstName() != null) {
            update.set("firstName", customer.getFirstName());
        }
        if (customer.getLastName() != null) {
            update.set("lastName", customer.getLastName());
        }
        if (customer.getEmail() != null) {
            update.set("email", customer.getEmail());
        }
        if (customer.getPhone() != null) {
            update.set("phone", customer.getPhone());
        }
        if (customer.getAddress() != null) {
            update.set("address", customer.getAddress());
        }

        mongoTemplate.updateMulti(Query.query(Criteria.where("lastName").is(customer.getLastName())), update, "mycollection");
    }

    public void deleteCustomerByLastName(String lastName) {

        mongoTemplate.remove(Query.query(Criteria.where("lastName").is(lastName)), "mycollection");
    }
}

Some notes about MongoDBRepository.java:

@Repository to specify the class as Spring bean
@PostConstruct to specify init() to run when the class is initiated, which is to create the MongoDatabaseFactor and MongoTemplate object
MongoTemplate is a thread-safe object which can make the MongoDBRepository bean sharable across multiple concurrent requests
This class supports insertCustomer, updateCustomerByLastName, getCustomerByLastName and deleteCustomerByLastName
Assume MongoDB is at localhost 27017, otherwise please use corresponding values

Sample requests and responses(assume the war file is deployed to <CONTEXT_PATH>):

Add a new record:


curl --request POST '<CONTEXT_PATH>/myapp/customer' --header 'Content-Type: application/json' --data-raw '
{
  "lastName": "Smith",
  "firstName": "Ethan",
  "email": "ethan.smith@maxjava.net",
  "phone": "650-123-1234",
  "address": {
      "street": "54321 Doyle Rd",
      "city": "Lexington",
      "state": "KY",
      "zipCode": 56789
  }
}'

Retrieve the record by last name


curl --request GET '<CONTEXT_PATH>/myapp/customer?lastName=Smith'

Response:


[
  {
    "_id": "62ad3907b7a6aa67e211fc12",
    "lastName": "Smith",
    "firstName": "Ethan",
    "address": {
      "street": "54321 Doyle Rd",
      "city": "Lexington",
      "state": "KY",
      "zipCode": 56789
    },
    "phone": "650-123-1234",
    "email": "ethan.smith@maxjava.net"
  }
]

Retrieve the record by last name


curl --request PUT '<CONTEXT_PATH>/myapp/customer' --header 'Content-Type: application/json' --data-raw '{
    "lastName": "Smith",
    "phone": "669-123-1234"
}'

Retrieve the record by same last name again


curl --request GET '<CONTEXT_PATH>/myapp/customer?lastName=Smith'

Response:


[
  {
    "_id": "62ad3907b7a6aa67e211fc12",
    "lastName": "Smith",
    "firstName": "Ethan",
    "address": {
      "street": "54321 Doyle Rd",
      "city": "Lexington",
      "state": "KY",
      "zipCode": 56789
    },
    "phone": "669-123-1234",
    "email": "ethan.smith@maxjava.net"
  }
]

Deleting records by the last name


curl --request DELETE '<CONTEXT_PATH>/myapp/customer?lastName=Smith'

Retrieve the record by same last name again


curl --request GET '<CONTEXT_PATH>/myapp/customer?lastName=Smith'

Response:

[]
