Complete tutorial of building Spring Boot REST API with Hibernate and JPA Entity Manager.

Configuration

Java Compilation:
Java Runtime:
Maven:

Java Compilation:
Java Runtime:
Gradle:

JDK 17.0.2
JRE OpenJDK 17.0.2
Maven 3.9.6

JDK 17.0.2
JRE OpenJDK 17.0.2
Gradle 8.6

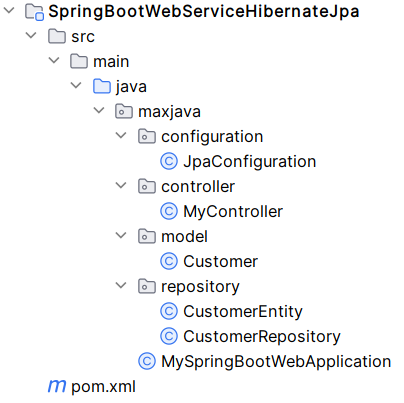

Create the following folder structure:

folder structure of Spring Boot REST API with Hibernate and JPA

pom.xml: (if using Gradle, replace pom.xml with build.gradle)


<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>
    <parent>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter-parent</artifactId>
        <version>3.2.5</version>
        <relativePath/>
    </parent>
    <groupId>net.maxjava</groupId>
    <artifactId>SpringBootWebServiceHibernateJpa</artifactId>
    <version>1.0</version>
    <packaging>jar</packaging>
    <dependencies>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-web</artifactId>
            <scope>compile</scope>
        </dependency>
        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-orm</artifactId>
            <version>6.1.6</version>
        </dependency>
        <dependency>
            <groupId>org.projectlombok</groupId>
            <artifactId>lombok</artifactId>
            <version>1.18.30</version>
        </dependency>
        <dependency>
            <groupId>mysql</groupId>
            <artifactId>mysql-connector-java</artifactId>
            <version>8.0.33</version>
        </dependency>
        <dependency>
            <groupId>org.hibernate.orm</groupId>
            <artifactId>hibernate-core</artifactId>
            <version>6.4.5.Final</version>
        </dependency>
        <dependency>
            <groupId>org.hibernate.orm</groupId>
            <artifactId>hibernate-c3p0</artifactId>
            <version>6.4.5.Final</version>
        </dependency>
        <dependency>
            <groupId>com.mchange</groupId>
            <artifactId>c3p0</artifactId>
            <version>0.9.5.5</version>
        </dependency>
    </dependencies>
    <build>
        <plugins>
            <plugin>
                <groupId>org.springframework.boot</groupId>
                <artifactId>spring-boot-maven-plugin</artifactId>
            </plugin>
        </plugins>
    </build>
</project>


plugins {
    id 'java'
    id 'org.springframework.boot' version '3.2.5'
    id 'io.spring.dependency-management' version '1.1.4'
}

group 'net.maxjava'
version '1.0'

repositories {
    mavenCentral()
}

dependencies {
    implementation 'org.springframework.boot:spring-boot-starter-web'
    implementation group: 'org.springframework', name: 'spring-orm', version: '6.1.6'
    implementation group: 'org.hibernate', name: 'hibernate-core', version: '6.4.5.Final'
    implementation group: 'org.hibernate', name: 'hibernate-c3p0', version: '6.4.5.Final'
    implementation group: 'com.mchange', name: 'c3p0', version: '0.9.5.5'
    implementation group: 'mysql', name: 'mysql-connector-java', version: '8.0.33'
    compileOnly 'org.projectlombok:lombok:1.18.30'
    annotationProcessor 'org.projectlombok:lombok:1.18.30'
}

Some notes about pom.xml:

Use spring-boot-starter-parent as parent POM for Spring Boot application
Spring Boot 3.2.5 requires Java 17
spring-orm for Hibernate related classes like session factories or transactions
hibernate-core for Hibernate classes
hibernate-c3p0 and c3p0 are for datasource
lombok is used to remove boilerplate code like get and set
Use spring-boot-maven-plugin to re-package all dependencies into a single, executable jar
By running mvn clean package, a jar artifact which is ready to run by using java -jar will be created

Some notes about gradle.build:

Use org.springframework.boot plugin for Spring Boot application, to make the jar executable and re-package all dependencies into a single jar
Spring Boot 3.2.5 requires Java 17
spring-orm for Hibernate related classes like session factories or transactions
hibernate-core for Hibernate classes
hibernate-c3p0 and c3p0 are for datasource
Use io.spring.dependency-management plugin for dependency management
lombok is used to remove boilerplate code like get and set
By running gradle clean build, a jar artifact which is ready to run by using java -jar will be created

MySpringBootWebApplication.java:


package maxjava;

import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;

@SpringBootApplication
public class MySpringBootWebApplication {
    public static void main(String[] args) {
        SpringApplication.run(MySpringBootWebApplication.class, args);
    }
}

Some notes about MySpringBootWebApplication.java:

Mark a class with @SpringBootApplication and pass the class in SpringApplication.run will be good enough to run a Spring Boot application with web server (default setting)
We could just put SpringApplication.run inside the static main function and annotate the same class for simplicity

MyController.java:


package maxjava.controller;

import maxjava.repository.CustomerRepository;
import maxjava.model.Customer;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.web.bind.annotation.*;

@RestController
@RequestMapping("/myapp")
public class MyController {

    @Autowired
    private CustomerRepository customerRepository;

    @GetMapping("/customer")
    public Customer getCustomer(@RequestParam("name") String name) {

        Customer customer = customerRepository.getCustomerByName(name);

        return customer;
    }

    @PostMapping("/customer")
    public void postCustomer(@RequestBody Customer customer) {

        customerRepository.saveCustomer(customer);
    }

    @PutMapping("/customer")
    public void putCustomer(@RequestBody Customer customer) {

        customerRepository.updateCustomer(customer);
    }

    @DeleteMapping("/customer")
    public void deleteCustomer(@RequestParam("name") String name) {

        customerRepository.deleteCustomerByName(name);
    }
}

Some notes about MyController.java:

Specifying @RestController will make this a controller to handle web request. Using @RestController instead of @Controller to perform serialization automatically, without the need of using @ResponseBody
This provides some basic CRUD APIs
CustomerRepository is autowired for interacting with the database

Customer.java:


package maxjava.model;

import lombok.Data;

@Data
public class Customer {

    private String name;
    private String email;
}

Some notes about Customer.java:

This is the object used in the request or response body on the Controller APIs
Use Lombok @Data for get and set

JpaConfiguration.java:


package maxjava.configuration;

import com.mchange.v2.c3p0.ComboPooledDataSource;
import org.hibernate.jpa.HibernatePersistenceProvider;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import org.springframework.orm.jpa.JpaTransactionManager;
import org.springframework.orm.jpa.LocalContainerEntityManagerFactoryBean;
import org.springframework.transaction.annotation.EnableTransactionManagement;

import javax.sql.DataSource;
import java.util.Properties;

@Configuration
@EnableTransactionManagement
public class JpaConfiguration {

    @Bean
    public LocalContainerEntityManagerFactoryBean localContainerEntityManagerFactoryBean() {

        LocalContainerEntityManagerFactoryBean localContainerEntityManagerFactoryBean = new LocalContainerEntityManagerFactoryBean();
        localContainerEntityManagerFactoryBean.setDataSource(getDataSource());
        localContainerEntityManagerFactoryBean.setPersistenceProviderClass(HibernatePersistenceProvider.class);
        localContainerEntityManagerFactoryBean.setJpaProperties(getJpaProperties());
        localContainerEntityManagerFactoryBean.setPackagesToScan("maxjava.repository");
        return localContainerEntityManagerFactoryBean;
    }

    @Bean
    JpaTransactionManager transactionManager() {

        JpaTransactionManager transactionManager = new JpaTransactionManager();
        transactionManager.setEntityManagerFactory(localContainerEntityManagerFactoryBean().getObject());
        return transactionManager;
    }

    private DataSource getDataSource() {

        final ComboPooledDataSource dataSource = new ComboPooledDataSource();
        dataSource.setJdbcUrl("jdbc:mysql://localhost:3306/mydb");
        dataSource.setUser("myuser");
        dataSource.setPassword("mypassword");
        try {
            dataSource.setDriverClass("com.mysql.cj.jdbc.Driver");
        }
        catch (java.beans.PropertyVetoException pve) {
            // Handle exception
        }
        return dataSource;
    }

    private Properties getJpaProperties() {

        Properties properties = new Properties();
        properties.put("jakarta.persistence.sharedCache.mode","NONE");

        return properties;
    }
}

Some notes about JpaConfiguration.java:

Register the bean LocalContainerEntityManagerFactoryBean, which providing Entity Manager factory thus Entity Manager
Register the bean JpaTransactionManager as transaction is used
Use ComboPooledDataSource to create the connection pool to MySQL

CustomerRepository.java:


package maxjava.repository;

import jakarta.persistence.EntityManager;
import jakarta.persistence.PersistenceContext;
import maxjava.model.Customer;
import org.springframework.stereotype.Repository;
import org.springframework.transaction.annotation.Transactional;

import java.util.Date;

@Repository
public class CustomerRepository {

    @PersistenceContext
    public EntityManager entityManager;

    public Customer getCustomerByName(String name) {

        CustomerEntity customerEntity = entityManager.find(CustomerEntity.class, name);

        Customer customer = new Customer();
        customer.setName(customerEntity.getName());
        customer.setEmail(customerEntity.getEmail());

        return customer;
    }

    @Transactional
    public void saveCustomer(Customer customer) {

        CustomerEntity customerEntity = new CustomerEntity();
        customerEntity.setName(customer.getName());
        customerEntity.setEmail(customer.getEmail());
        customerEntity.setCreatedDate(new Date());

        entityManager.persist(customerEntity);
    }

    @Transactional
    public void updateCustomer(Customer customer) {

        CustomerEntity customerEntity = new CustomerEntity();
        customerEntity.setName(customer.getName());
        customerEntity.setEmail(customer.getEmail());
        customerEntity.setCreatedDate(new Date());

        entityManager.merge(customerEntity);
    }

    @Transactional
    public void deleteCustomerByName(String name) {

        CustomerEntity customerEntity = entityManager.find(CustomerEntity.class, name);
        if (customerEntity != null) {
            entityManager.remove(customerEntity);
        }
    }
}

Some notes about CustomerRepository.java:

Inject the EntityManager bean by using the @PersistenceContext annotation
Put @Transactional around each function requires transaction (the ones with writes)
Mark this with @Repository as a bean

CustomerEntity.java:


package maxjava.repository;

import jakarta.persistence.*;
import lombok.Data;
import java.util.Date;

@Data
@Entity
@Table(name="Customer")
public class
CustomerEntity {

    @Id
    @Column(name="Name", length=50, nullable=false)
    private String name;

    @Basic
    @Column(name="Email")
    private String email;

    @Temporal(TemporalType.TIMESTAMP)
    @Column(name="CreatedDate")
    private Date createdDate;
}

Some notes about CustomerEntity.java:

Use Lombok @Data for get and set

This is the mapped class for the table "Customer" with following chema:


CREATE TABLE Customer (
	Name VARCHAR(50) NOT NULL,
	Email VARCHAR(50) NULL DEFAULT NULL,
	CreatedDate TIMESTAMP NULL DEFAULT NULL,
	PRIMARY KEY (Name)
)

Sample requests and responses:

Add a new Customer record:


curl --request POST '<CONTEXT_PATH>/myapp/customer' --header 'Content-Type: application/json' --data-raw '
{
  "name": "Ethan",
  "email": "ethan@maxjava.net"
}'

Retrieve the Customer record by name


curl --request GET '<CONTEXT_PATH>/myapp/customer?name=Ethan'

Response:


{
    "name": "Ethan",
    "email": "ethan@maxjava.net"
}

Updating the Customer record by name


curl --request PUT '<CONTEXT_PATH>/myapp/customer' --header 'Content-Type: application/json' --data-raw '
{
  "name": "Ethan",
  "email": "ethan.new@maxjava.net"
}'

Retrieve the record again by same name, the data is changed


curl --request GET '<CONTEXT_PATH>myapp/customer?name=Ethan'

Response:


{
    "name": "Ethan",
    "email": "ethan.new@maxjava.net"
}

deleting the Customer record by name


curl --request DELETE '<CONTEXT_PATH>/myapp/customer?name=Ethan'
