Complete tutorial of building Spring Boot REST API using Redis.

Configuration

Java Compilation:
Java Runtime:
Maven:

Java Compilation:
Java Runtime:
Gradle:

JDK 17.0.2
JRE OpenJDK 17.0.2
Maven 3.9.6

JDK 17.0.2
JRE OpenJDK 17.0.2
Gradle 8.6

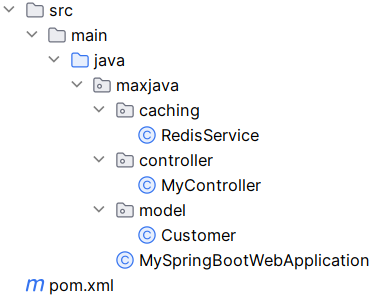

Create the following folder structure:

folder structure of Spring Boot REST API using Redis

pom.xml: (if using Gradle, replace pom.xml with build.gradle)


<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>
    <parent>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter-parent</artifactId>
        <version>3.2.2</version>
        <relativePath/>
    </parent>
    <groupId>net.maxjava</groupId>
    <artifactId>SpringBootRESTAPIRedis</artifactId>
    <version>1.0</version>
    <packaging>jar</packaging>
    <dependencies>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-web</artifactId>
            <scope>compile</scope>
        </dependency>
        <dependency>
            <groupId>redis.clients</groupId>
            <artifactId>jedis</artifactId>
            <version>5.1.2</version>
        </dependency>
        <dependency>
            <groupId>org.projectlombok</groupId>
            <artifactId>lombok</artifactId>
            <version>1.18.30</version>
        </dependency>
    </dependencies>
    <build>
        <plugins>
            <plugin>
                <groupId>org.springframework.boot</groupId>
                <artifactId>spring-boot-maven-plugin</artifactId>
            </plugin>
        </plugins>
    </build>
</project>


plugins {
    id 'java'
    id 'org.springframework.boot' version '3.2.5'
    id 'io.spring.dependency-management' version '1.1.4'
}

group 'net.maxjava'
version '1.0'

repositories {
    mavenCentral()
}

dependencies {
    implementation 'org.springframework.boot:spring-boot-starter-web'
    implementation group: 'redis.clients', name: 'jedis', version: '5.1.2'
    compileOnly 'org.projectlombok:lombok:1.18.30'
    annotationProcessor 'org.projectlombok:lombok:1.18.30'
}

Some notes about pom.xml:

Use spring-boot-starter-parent as parent POM for Spring Boot application
Spring Boot 3.2.5 requires Java 17
Use jedis for interacting with Redis
lombok is used to remove boilerplate code like get and set
Use spring-boot-maven-plugin to re-package all dependencies into a single, executable jar
By running mvn clean package, a jar artifact which is ready to run by using java -jar will be created

Some notes about gradle.build:

Use org.springframework.boot plugin for Spring Boot application, to make the jar executable and re-package all dependencies into a single jar
Spring Boot 3.2.5 requires Java 17
Use jedis for interacting with Redis
Use io.spring.dependency-management plugin for dependency management
lombok is used to remove boilerplate code like get and set
By running gradle clean build, a jar artifact which is ready to run by using java -jar will be created

MySpringBootWebApplication.java:


package maxjava;

import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;

@SpringBootApplication
public class MySpringBootWebApplication {

    public static void main(String[] args) {
        SpringApplication.run(maxjava.MySpringBootWebApplication.class, args);
    }
}

Some notes about MySpringBootWebApplication.java:

Mark a class with @SpringBootApplication and pass the class in SpringApplication.run will be good enough to run a Spring Boot application with web server (default setting)
We could just put SpringApplication.run inside the static main function and annotate the same class for simplicity

MyController.java:


package maxjava.controller;

import maxjava.caching.RedisService;
import maxjava.model.Customer;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.web.bind.annotation.*;

@RestController
@RequestMapping("/myapp")
public class MyController {

    final String CUSTOMER_PREFIX = "customer:";

    @Autowired
    RedisService redisService;

    @PutMapping("/customer")
    public void putCustomer(@RequestBody Customer customer) {

        try {
            String key = CUSTOMER_PREFIX + customer.getName();
            String result = redisService.setCache(key, customer);
            if (!"OK".equals(result)) {
                // Throw exception or handle error
            }
        }
        catch (Exception e) {
            // Handle Exception
        }
    }

    @GetMapping("/customer")
    public Customer getCustomer(@RequestParam("name") String name) {

        Customer customer = null;
        try {
            String key = CUSTOMER_PREFIX + name;
            customer = (Customer) redisService.getCache(key, Customer.class);
        }
        catch (Exception e) {
            // Handle Exception
        }
        return customer;
    }
}

Some notes about MyController.java:

Specifying @RestController will make this a controller to handle web request. Using @RestController instead of @Controller to perform serialization automatically, without the need of using @ResponseBody
The putCustomer is mapped to PUT /myapp/customer with the request body as the Customer object
The Customer object will be passed on to the RedisService, using the name (a prefix is added to the key for segregation) as the key
The getCustomer is mapped to GET /myapp/customer
Using the name (prefix added) as the key, the Customer object will be retrieved from RedisService

Customer.java:


package maxjava.model;

import lombok.Data;

@Data
public class Customer {

    private String name;
    private String email;
    private int age;
}

Some notes about Customer.java:

This is the object used in the request or response body on the Controller APIs
Use Lombok @Data for get and set

RedisService.java:


package maxjava.caching;

import com.fasterxml.jackson.databind.ObjectMapper;
import jakarta.annotation.PostConstruct;
import org.springframework.stereotype.Service;
import redis.clients.jedis.Jedis;
import redis.clients.jedis.JedisPool;

@Service
public class RedisService {

    protected JedisPool jedisPool;
    private final String serverIP = "localhost";
    private final int port = 6379;

    @PostConstruct
    private void init() {
        jedisPool = new JedisPool(serverIP, port);
    }

    public String setCache(String key, Object object) throws Exception {

        ObjectMapper objectMapper = new ObjectMapper();
        String json = objectMapper.writeValueAsString(object);

        try (Jedis jedis = jedisPool.getResource()) {
            return jedis.set(key, json);
        }
    }

    public Object getCache(String key, Class clazz) throws Exception {

        ObjectMapper objectMapper = new ObjectMapper();

        try (Jedis jedis = jedisPool.getResource()) {

            String json = jedis.get(key);
            Object object = objectMapper.readValue(json, clazz);

            return object;
        }
    }
}

Some notes about RedisService.java:

During PostConstruct, initiate the JedisPool, which is thread safe for sharing for all requests
The setCache function stores the object in Redis. First serialize the object into json string then call the Jedis set function
The getCache function retrieve the object (as json string) from Redis then de-serialize the json string into actual object

Sample requests and responses:

Put a Customer record:


curl --request PUT '<CONTEXT_PATH>/myapp/customer' --header 'Content-Type: application/json' --data-raw '
{
    "name": "Ethan",
    "email": "ethan@maxjava.net",
    "age": 26
}'

Retrieve the Customer record:


curl --request GET '<CONTEXT_PATH>/myapp/customer?name=Ethan'

Response:


{
    "name": "Ethan",
    "email": "ethan@maxjava.net",
    "age": 26
}
