Spring Authentication allows us to identify who is trying to access the resource while Spring Authorization allows us to determine who is allowed to access the resource.

Configuration

Java Compilation:
Java Runtime:
Web Server:
Maven:

Java Compilation:
Java Runtime:
Web Server:
Gradle:

JDK 17.0.2
JRE OpenJDK 17.0.2
Tomcat 10.1.16
Maven 3.9.6

JDK 17.0.2
JRE OpenJDK 17.0.2
Tomcat 10.1.16
Gradle 8.6

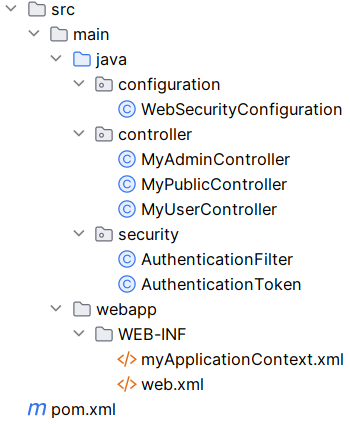

Create the following folder structure:

pom.xml: (if using Gradle, replace pom.xml with build.gradle)


<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
             xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
             xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>
    <groupId>net.maxjava</groupId>
    <artifactId>SpringWebSecurity</artifactId>
    <version>1.0</version>
    <packaging>war</packaging>

    <dependencies>
        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-webmvc</artifactId>
            <version>6.1.6</version>
        </dependency>
        <dependency>
            <groupId>org.springframework.security</groupId>
            <artifactId>spring-security-web</artifactId>
            <version>6.1.6</version>
        </dependency>
        <dependency>
            <groupId>org.springframework.security</groupId>
            <artifactId>spring-security-config</artifactId>
            <version>6.1.6</version>
        </dependency>
        <dependency>
            <groupId>jakarta.servlet</groupId>
            <artifactId>jakarta.servlet-api</artifactId>
            <version>6.1.0</version>
            <scope>provided</scope>
        </dependency>
    </dependencies>
    <build>
        <plugins>
            <plugin>
                <artifactId>maven-compiler-plugin</artifactId>
                <version>3.13.0</version>
                <configuration>
                    <source>17</source>
                    <target>17</target>
                </configuration>
            </plugin>
        </plugins>
    </build>
</project>


plugins {
    id 'java'
    id 'war'
}

java {
    sourceCompatibility = 17
    targetCompatibility = 17
}

group 'net.maxjava'
version '1.0'

repositories {
    mavenCentral()
}

dependencies {
    implementation group: 'org.springframework', name: 'spring-webmvc', version: '6.1.6'
    implementation group: 'org.springframework.security', name: 'spring-security-web', version: '6.1.6'
    implementation group: 'org.springframework.security', name: 'spring-security-config', version: '6.1.6'
    compileOnly group: 'jakarta.servlet', name: 'jakarta.servlet-api', version: '6.1.0'
}

Some notes about pom.xml:

spring-security-web and spring-security-config are needed for Spring web security
jakarta.servlet-api for servlet related classes
maven-compiler-plugin is for compiling the code using source version 17 and target version 17
A war artifact will be created for deployment to servlet containers

Some notes about build.gradle:

spring-security-web and spring-security-config are needed for Spring web security
jakarta.servlet-api for servlet related classes
maven-compiler-plugin is for compiling the code using source version 17 and target version 17
A war artifact will be created for deployment to servlet containers

web.xml:


<web-app>
    <display-name>Spring Web Security</display-name>
    <servlet>
        <servlet-name>SpringWebSecurity</servlet-name>
        <servlet-class>org.springframework.web.servlet.DispatcherServlet</servlet-class>
        <init-param>
            <param-name>contextConfigLocation</param-name>
            <param-value>/WEB-INF/myApplicationContext.xml</param-value>
        </init-param>
        <load-on-startup>1</load-on-startup>
    </servlet>
    <filter>
        <filter-name>springSecurityFilterChain</filter-name>
        <filter-class>org.springframework.web.filter.DelegatingFilterProxy</filter-class>
    </filter>
    <filter-mapping>
        <filter-name>springSecurityFilterChain</filter-name>
        <url-pattern>/*</url-pattern>
    </filter-mapping>
    <servlet-mapping>
        <servlet-name>SpringWebSecurity</servlet-name>
        <url-pattern>/*</url-pattern>
    </servlet-mapping>
</web-app>

Some notes about web.xml:

org.springframework.web.servlet.DispatcherServlet is the servlet class for Spring
/WEB-INF/myApplicationContext.xml is the location of the Spring context configuration file
define org.springframework.web.filter.DelegatingFilterProxy for Spring filters to be recognized by the servlet container

myApplicationContext.xml:


<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
       xmlns:context="http://www.springframework.org/schema/context"
       xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
       xsi:schemaLocation="
	http://www.springframework.org/schema/beans
	http://www.springframework.org/schema/beans/spring-beans.xsd
    http://www.springframework.org/schema/context
	http://www.springframework.org/schema/context/spring-context.xsd">
   <context:component-scan base-package="controller,configuration"/>
</beans>

Some notes about myApplicationContext.xml:

<context:component-scan base-package="controller,configuration"/> is for Spring to look for classes in controller,configuration packages to create beans

WebSecurityConfiguration.java:


package configuration;

import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import org.springframework.security.config.annotation.web.builders.HttpSecurity;
import org.springframework.security.config.annotation.web.configuration.EnableWebSecurity;
import org.springframework.security.config.http.SessionCreationPolicy;
import org.springframework.security.web.SecurityFilterChain;
import org.springframework.security.web.authentication.UsernamePasswordAuthenticationFilter;
import org.springframework.security.web.util.matcher.AntPathRequestMatcher;
import security.AuthenticationFilter;

@Configuration
@EnableWebSecurity
public class WebSecurityConfiguration {

    @Bean
    public SecurityFilterChain filterChain(HttpSecurity http) throws Exception {

        http.sessionManagement(customizer -> customizer.sessionCreationPolicy(SessionCreationPolicy.STATELESS));

        http.exceptionHandling( customizer -> customizer
                .authenticationEntryPoint((request, response, e) -> {
                    response.setStatus(401);
                    response.getWriter().write("You are not authenticated.");})
                .accessDeniedHandler((request, response, accessDeniedException) -> {
                    response.setStatus(403);
                    response.getWriter().write("You are not authorized to access this resource.");})
        );

        http.authorizeHttpRequests(customizer -> customizer
                        .requestMatchers(AntPathRequestMatcher.antMatcher("/adminApp/**")).hasRole("ADMIN")
                        .requestMatchers(AntPathRequestMatcher.antMatcher("/publicApp/**")).permitAll()
                        .anyRequest().authenticated()
        );

        http.addFilterBefore(new AuthenticationFilter(), UsernamePasswordAuthenticationFilter.class);

        return http.build();
    }
}

Some notes about WebSecurityConfiguration.java:

@Configuration to define Spring configuration where @Bean on the filterChain method to create the SecurityFilterChain bean
@EnableWebSecurity enables HttpSecurity to be used in the filterChain method
http.sessionManagement().sessionCreationPolicy(SessionCreationPolicy.STATELESS) to make the security context stateless so that every request is independent
http.addFilterBefore(new AuthenticationFilter(), UsernamePasswordAuthenticationFilter.class) to add our customized filter - AuthenticatorFilter (see below for explanation) to the servlet filter chain right after UsernamePasswordAuthenticationFilter which is the beginning of authentication
http.exceptionHandling().authenticationEntryPoint() to define response for non-authenticated, meaning no AuthenticationToken is set during AuthenticationFilter
http.exceptionHandling().accessDeniedHandler() to define response for non-authorized, meaning failing to meeting the authorization rules defined in http.authorizeHttpRequests
http.authorizeRequests().antMatchers("/adminApp/**").hasRole("ADMIN") to allow only the security context has the role "ROLE_ADMIN" (see below AuthenticationFilter for how the "ROLE_ADMIN" is assigned) to access the resources which is on the path "/adminApp/**"
http.authorizeRequests().antMatchers("/publicApp/**").permitAll() to allow access the resources which is on the path "/publicApp/**" with no need for authentication or authorization
http.authorizeRequests().anyRequest().authenticated() to allow all other resources ("/userApp/**") besides "/adminApp/**" and "/publicApp/**" requires only authentication

AuthenticationFilter.java:


package security;

import jakarta.servlet.FilterChain;
import jakarta.servlet.ServletException;
import jakarta.servlet.http.HttpServletRequest;
import jakarta.servlet.http.HttpServletResponse;
import org.springframework.security.core.GrantedAuthority;
import org.springframework.security.core.authority.SimpleGrantedAuthority;
import org.springframework.security.core.context.SecurityContextHolder;
import org.springframework.web.filter.OncePerRequestFilter;

import java.io.IOException;
import java.util.ArrayList;
import java.util.Base64;
import java.util.List;

public class AuthenticationFilter extends OncePerRequestFilter {

    private String[][] USER_PASSWORD_ROLE = { {"Sam","sampass","ROLE_ADMIN"}, {"Mary","marypass","ROLE_USER"}, {"John","johnpass","ROLE_USER"}};

    @Override
    protected void doFilterInternal(HttpServletRequest httpServletRequest, HttpServletResponse httpServletResponse, FilterChain filterChain) throws ServletException, IOException {

        AuthenticationToken authenticationToken = null;

        String role = verifyUser(httpServletRequest);
        if (role != null) {

            List<GrantedAuthority> grantedAuthorities = new ArrayList<>();
            grantedAuthorities.add(new SimpleGrantedAuthority(role));
            authenticationToken = new AuthenticationToken(grantedAuthorities);

            SecurityContextHolder.getContext().setAuthentication(authenticationToken);
        }
        filterChain.doFilter(httpServletRequest, httpServletResponse);
    }

    private String verifyUser(HttpServletRequest httpServletRequest) {

        String role = null;
        String authorizationHeader = httpServletRequest.getHeader("Authorization");
        if (authorizationHeader != null) {
            String encodedUsernameAndPasswordIncoming = authorizationHeader.substring("Basic".length()).trim();
            for (String[] userPasswordRole: USER_PASSWORD_ROLE) {
                String encodedUsernameAndPasswordCalculated = Base64.getEncoder().encodeToString((userPasswordRole[0] + ":" + userPasswordRole[1]).getBytes());
                if (encodedUsernameAndPasswordCalculated.equals(encodedUsernameAndPasswordIncoming)) {
                    role = userPasswordRole[2];
                    break;
                }
            }
        }

        return role;
    }
}

Some notes about AuthenticationFilter.java:

This is the logic to decide what role this request session should have
Overriding the doFilterInternal method, from HttpServletRequest we verify the username and password using Base64 to see if any of the USER_PASSWORD_ROLE element is matching. If so, create a new AuthenticationToken with the role and assign the token to SecurityContextHolder
When setting the AuthenticationToken, a prefix "ROLE_" needs to be added to the actual role
The example above is using Basic Authentication, the actual authentication logic could be changed

AuthenticationToken.java:


package security;

import org.springframework.security.authentication.AbstractAuthenticationToken;
import org.springframework.security.core.GrantedAuthority;
import javax.security.auth.Subject;
import java.util.Collection;

public class AuthenticationToken extends AbstractAuthenticationToken {

    public AuthenticationToken(Collection authorities) {
        super(authorities);
        super.setAuthenticated(true);
    }

    @Override
    public Object getCredentials() {
        return null;
    }

    @Override
    public Object getPrincipal() {
        return null;
    }

    @Override
    public boolean implies(Subject subject) {
        return false;
    }
}

Some notes about AuthenticationToken.java:

The SecurityContextHolder is taking AbstractAuthenticationToken which is an abstract class so we need to define a regular class which extends AbstractAuthenticationToken
Create a constructor and add super.setAuthenticated(true) to set this token as authenticated
Other methods no need to be changed

Now the configurations are done, let's create some controllers to test it:

MyAdminController.java:


package controller;

import org.springframework.web.bind.annotation.GetMapping;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RestController;

import java.util.Calendar;

@RestController
@RequestMapping("/adminApp")
public class MyAdminController {

    @GetMapping("/currentTime")
    public String getCurrentTime() {

        return "ADMIN " + Calendar.getInstance().getTime().toString();
    }
}

MyUserController.java:


package controller;

import org.springframework.web.bind.annotation.GetMapping;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RestController;

import java.util.Calendar;

@RestController
@RequestMapping("/userApp")
public class MyUserController {

    @GetMapping("/currentTime")
    public String getCurrentTime() {

        return "USER " + Calendar.getInstance().getTime().toString();
    }
}

MyPublicController.java:


package controller;

import org.springframework.web.bind.annotation.GetMapping;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RestController;

import java.util.Calendar;

@RestController
@RequestMapping("/publicApp")
public class MyPublicController {

    @GetMapping("/currentTime")
    public String getCurrentTime() {

        return "PUBLIC " + Calendar.getInstance().getTime().toString();
    }
}

Sample requests and responses:(assume the war file is deployed to <CONTEXT_PATH>)

With Sam and sampass (U2FtOnNhbXBhc3M= is the base64 encoded Sam:sampass) which has the ROLE_ADMIN to call /adminApp/currentTime:


curl --location --request GET '<CONTEXT_PATH>/adminApp/currentTime' --header 'Authorization: Basic U2FtOnNhbXBhc3M='

Response:


ADMIN Fri Jun 21 12:41:10 PDT 2024

With Mary and marypass (TWFyeTptYXJ5cGFzcw== is the base64 encoded Mary:marypass) which has the ROLE_USER to call /adminApp/currentTime:


curl --location --request GET '<CONTEXT_PATH>/adminApp/currentTime' --header 'Authorization: Basic TWFyeTptYXJ5cGFzcw=='

Response:


You are not authorized to access this resource.

With no authentication to call /adminApp/currentTime:


curl --location --request GET '<CONTEXT_PATH>/adminApp/currentTime'

Response:


You are not authenticated.

With Mary and marypass to call /userApp/currentTime:


curl --location --request GET '<CONTEXT_PATH>/userApp/currentTime' --header 'Authorization: Basic TWFyeTptYXJ5cGFzcw=='

Response:


USER Fri Jun 21 12:38:34 PDT 2024

With no authentication to call /userApp/currentTime:


curl --location --request GET '<CONTEXT_PATH>/userApp/currentTime'

Response:


You are not authenticated.

With no authentication to call /publicApp/currentTime:


curl --location --request GET '<CONTEXT_PATH>/publicApp/currentTime'

Response:


PUBLIC Fri Jun 21 12:40:34 PDT 2024
